Redline Proline Pro BMX Race Bike-Black

Save 28%
$488.88 $674.95
Secure Checkout

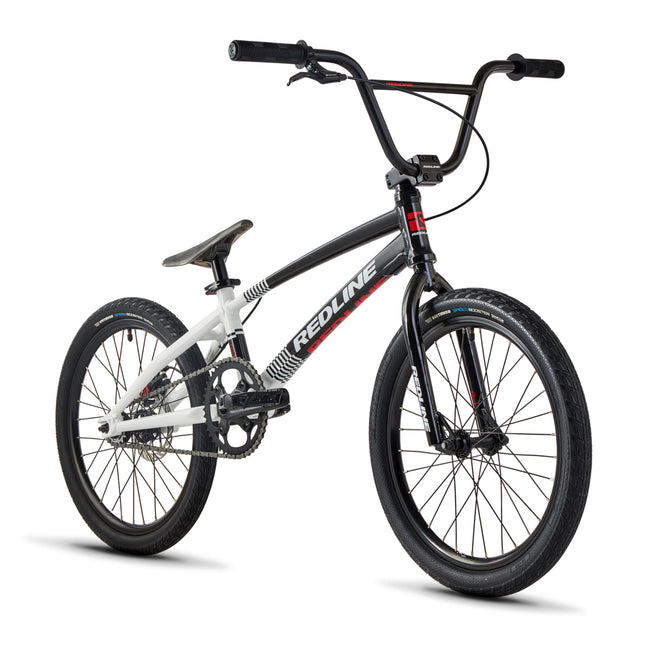

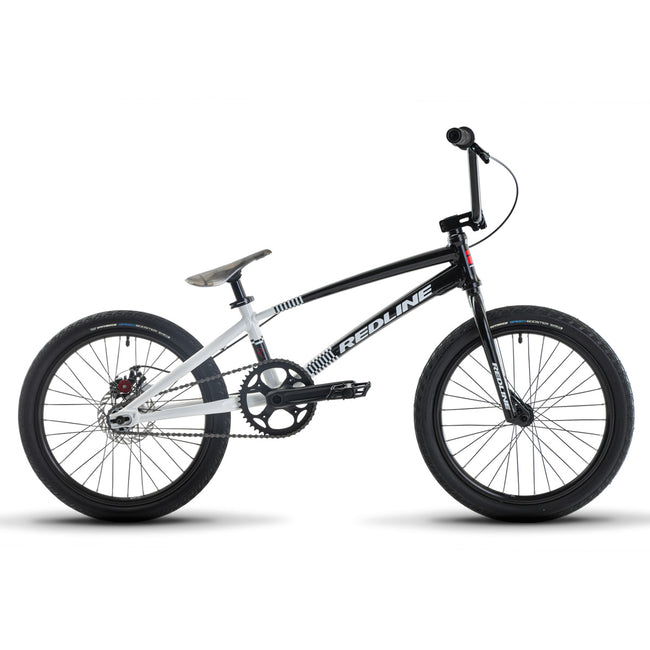

About This Product: Redline Proline Pro BMX Race Bike-Black

The Redline Proline Pro BMX Race Bike-Black at J&R Bicycles is a high-quality race bike perfect for experienced riders looking to up their racing game. Featuring a proprietary Redline frame built from formed and butted aluminum alloy tubing for killer lightweight responsiveness. The tapered and butted race fork is made from 100% chromoly steel alloy so it is strong without adding much weight. The Redline Proline also comes equipped with an integrated head tube, external sealed Euro BB, fully sealed hubs and 2-piece ally-forged cranks with a chromoly spindle for extra durability. High-quality components and design mean the Proline gets you to the finish line faster.

SPECIFICATIONS

  • FRAME: Proprietary Alloy Formed and Butted Tubing

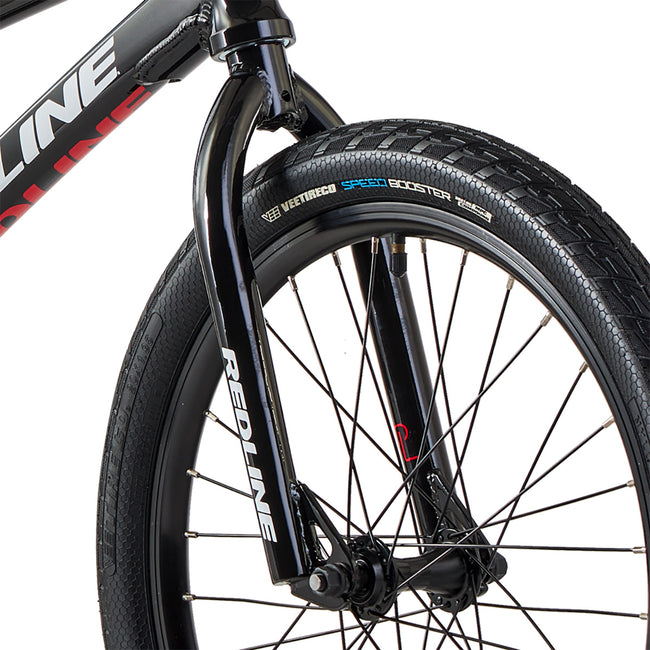

  • FORK: Full Chromo With Tapered Legs
  • HEADSET: Sealed Integrated Headset 1 1/8, Aluminum top cap

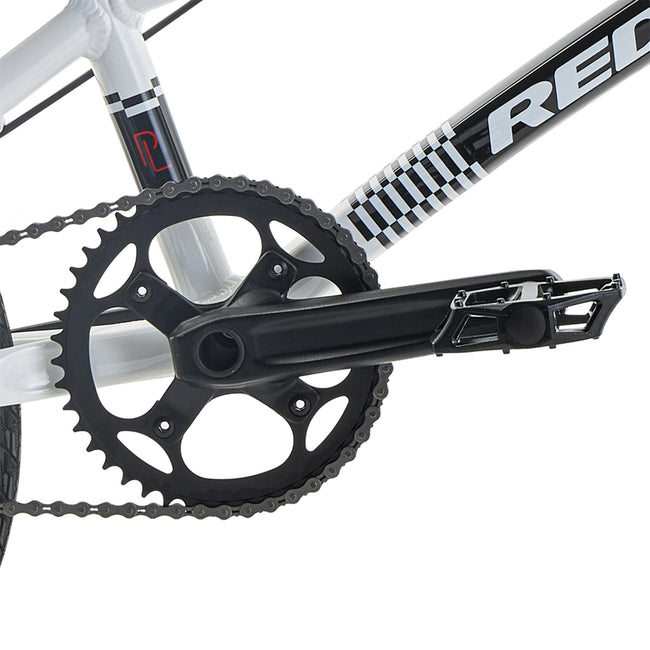

  • CRANKS: Proline 2pc Alloy Forged Cranks, 170mm w/24mm Chromo Spindle
  • SPROCKET: 44t, Alloy, 104 BCD
  • BOTTOM BRACKET: External Sealed Euro BB
  • COGSET: 16t
  • CHAIN: KMC Z6
  • FRONT HUB: Redline Aluminum Fully Sealed
  • REAR HUB: Redline Aluminum, Cassette, Fully Sealed
  • SPOKES: Stainless 14g, Black
  • RIMS: A-M6 Alloy Race, 20 x 1.5, 32h
  • TIRES: Vee Speed Booster, F. 20 x 1.95" / R. 20 x 1.75"

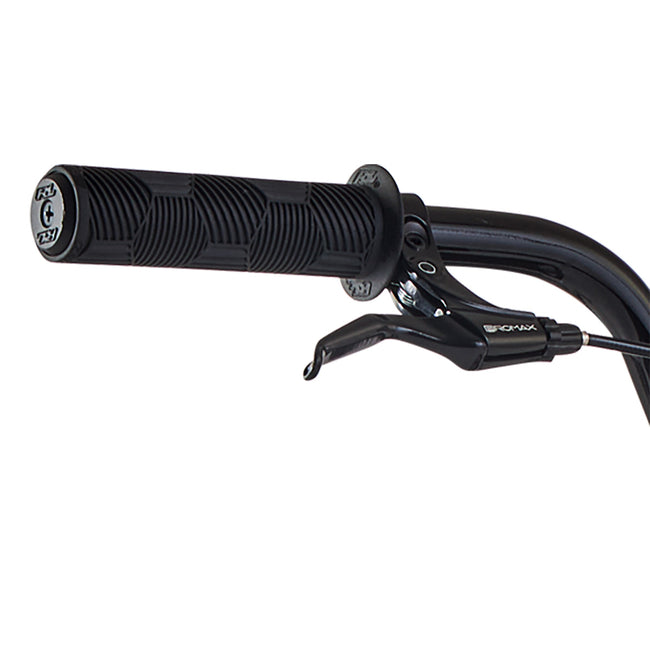

  • BRAKE LEVERS: Promax XL-373
  • PEDALS: RL Aluminum 9/16" Platform

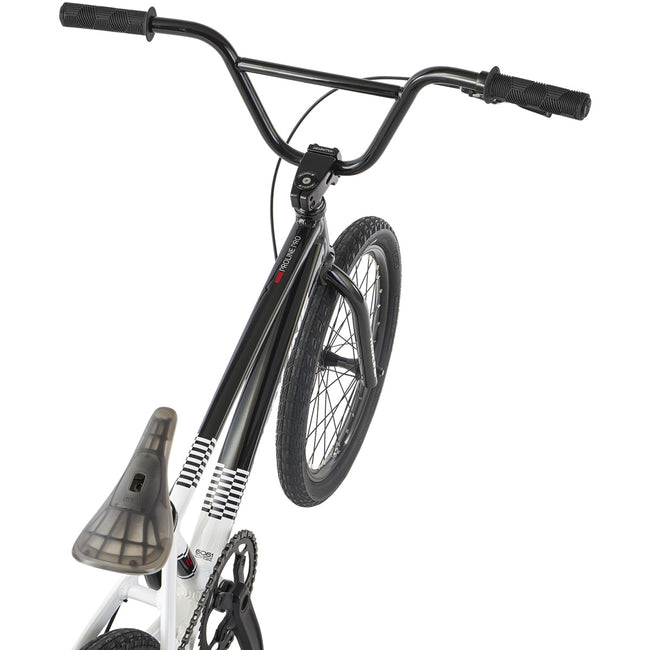

  • HANDLEBAR: RL Pro Chromo 7.5" Rise / 10° Back / 4° Up
  • GRIPS: RL Pro Hex Grips
  • STEM: RL Aluminum HollowPoint 55mm

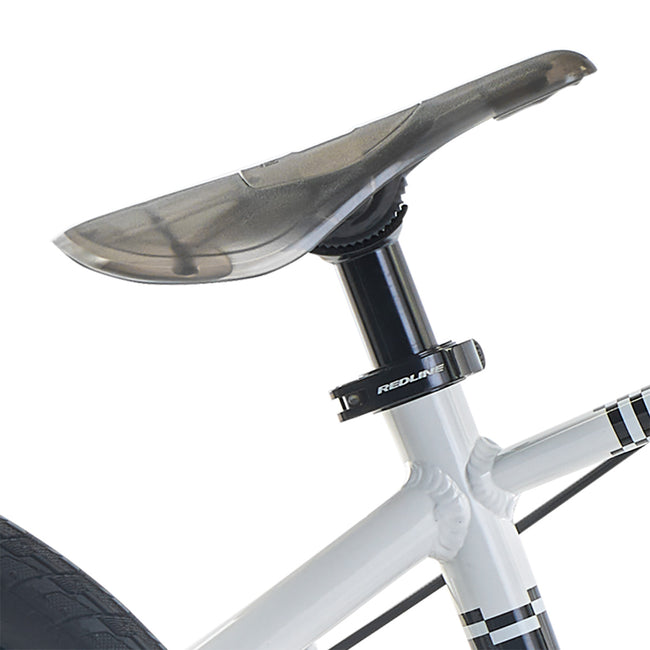

  • SEAT: Race Pivotal, No padding
  • SEATPOST: Aluminum Pivotal 26.8mm
  • EXTRAS: Chain Tensioners

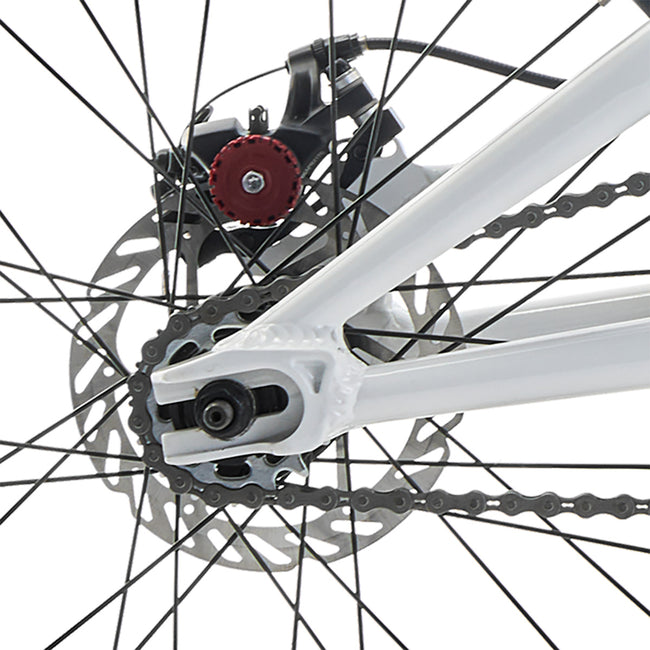

  • BRAKES: Avid BB5 Disc Brake

GEOMETRY

  • FRAME SIZE: 20"
  • RIDER HEIGHT: -
  • BIKE TOP TUBE LENGTH: 20.5"
  • BIKE HEAD ANGLE: 74.0°
  • BIKE SEAT ANGLE: 70.0°
  • BIKE CHAIN STAY LENGTH: 13.75"
  • BIKE BB HEIGHT: 11.3"
  • BIKE STEM LENGTH: 55.0mm
  • BIKE HANDLEBAR WIDTH: 28.25"
  • BIKE CRANK LENGTH: 170.0mm

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Redline Race Bike Size Charts

Redline Race Bike Size Charts
Size Rider's Height
: Micro : 4'4" and under
: Mini : 4'2" - 4'6"
: Junior : 4'6" - 5'1"
: Pitboss : 4'2" - 5'1"
: Expert : 5'0" - 5'4"
: Expert XL : 5'2" - 5'6"
: Pro : 5'3" - 5'8"
: Pro XL : 5'7" - 6'0"
: Pro XXL : 6'0" and over
: Pro 24 : 5'7" and over

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:

Need Some help Choosing a BMX Bike?

Selecting the right size BMX bike is vital for a smooth and delightful ride. At J&R Bicycles, we understand the BMX world inside out because we're passionate riders ourselves. Just reach out to us, and we'll be more than happy to assist you on your journey to finding the perfect BMX bike.

Curious to learn more? We've compiled a comprehensive BMX buyer's guide to demystify the process. Read on, and together, we'll uncover the BMX bike that perfectly matches your riding style and preferences.
