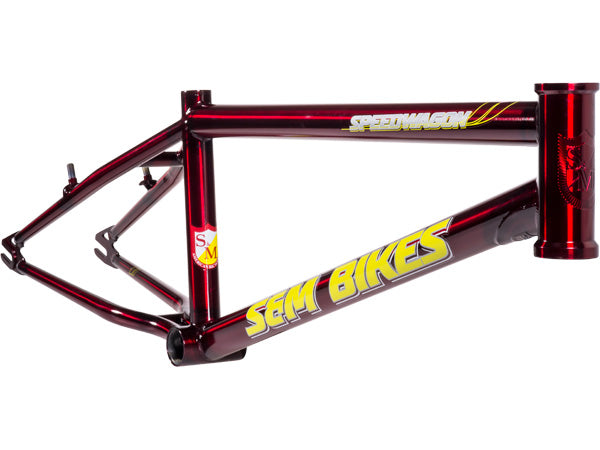

S&M Speedwagon BMX Race Frame-Trans Red

Sold Out

About This Product: S&M Speedwagon BMX Race Frame-Trans Red

S&M produces some of the best U.S.A. made components known to BMX and their chromoly Speedwagon race frame is no different.

FEATURES:
*100% 4130 chromoly tubing

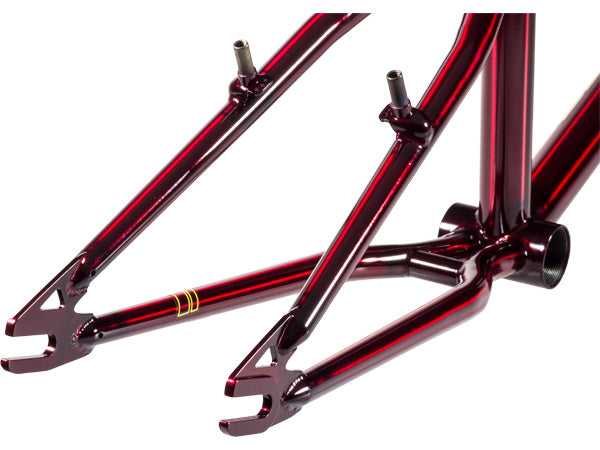

*CNC machined 3/8" dropouts
*Lower stand-over height compared to their popular .38 Special

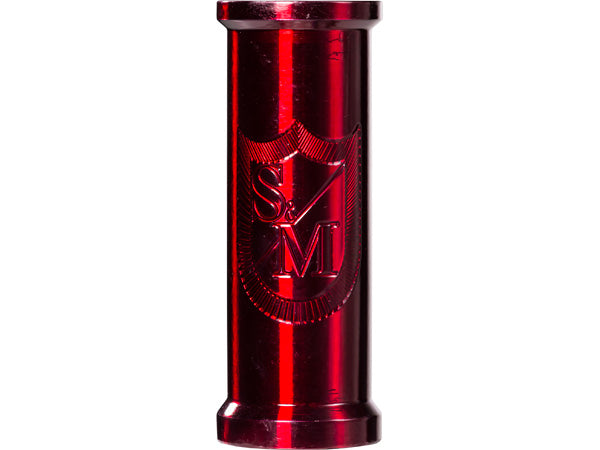

*Integrated Campy (45°/45°) headtube
*race-proven geometry

SPECS:
All-Pro Sizes: 27.2mm post, 30mm seat clamp (use the S&M specific clamp - see our seat clamp section)
USE: Race
MATERIAL: 4130 chromoly
HEADSET STYLE: Integrated
BRAKE MOUNTS: V-Brake
BB SHELL: Euro
TT: Top Tube | CS: Chain Stay | SA: Seat Angle | HA: Head Angle
SIZE
TT
CS
HEADSET HA SA BB HEIGHT WEIGHT
PRO PLUS
20.75" 14"-15" 1 1/8" 74.5° 71° 11.5" TBA
PRO XL
21" 14"-15" 1 1/8" 74.5° 71° 11.5" TBA
PRO XL PLUS
21.25" 14"-15" 1 1/8" 74.5° 71° 11.5" 4.17lbs/1.89kg
PRO XXL 21.5" 14"-15" 1 1/8" 74.5° 71° 11.5" TBA
PRO XXL PLUS
21.75" 14"-15" 1 1/8" 74.5° 71° 11.5" TBA
PRO XXXL  22"  14"-15"  1 1/8"  74.5°  71°  11.5" TBA
PRO 24"  21.5"  14.75"-15.5"  1 1/8"  73°  70.5° 12"  4.3lbs/1.95kg
PRO XL 24"  22"   14.75"-15.5"  1 1/8"   73°   70.5°  12" 4.35lbs/1.97kg

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:
