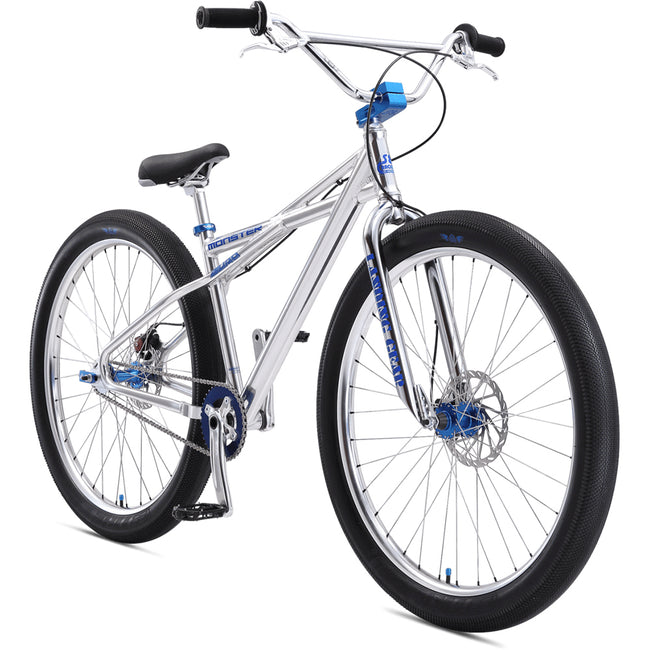

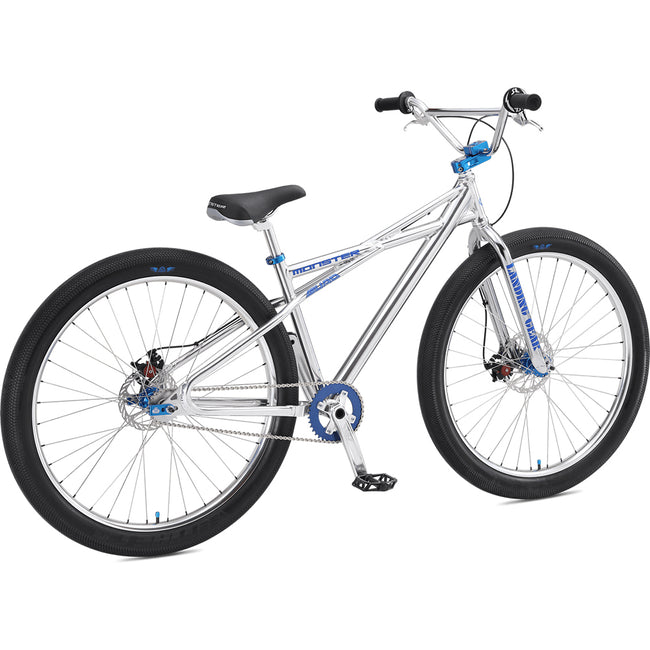

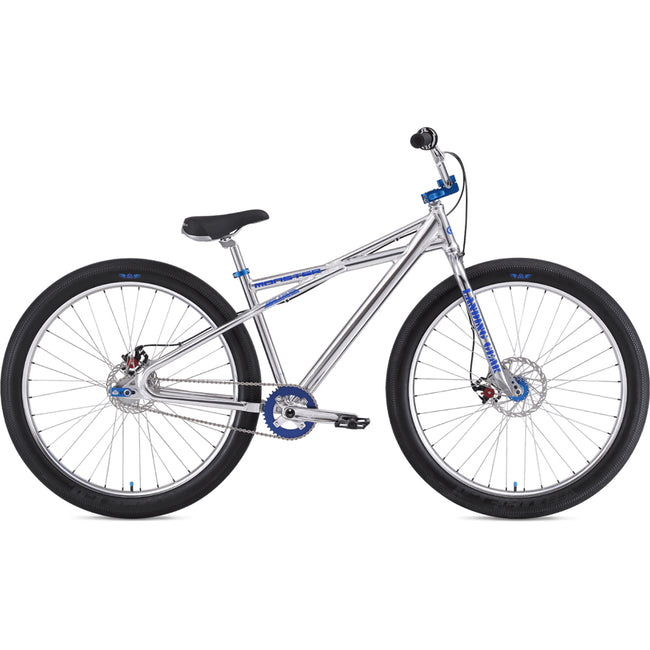

SE Monster Quad 29" BMX Bike-High Polish Silver

The ultimate definition of BMX Innovations, this year we introduce the world’s first 29+ BMX bike, the Monster Quad! Built around huge 29” x 2.8” Vee Speedster tires, this Monster is the biggest BMX bike on the planet. The unique Monster Quad frame design features an oversized downtube, integrated head tube, super stiff BB yoke, and a legendary looptail rear end. The front and rear Avid BB5 disc brakes and 2-piece alloy cranks really put this bike over the top. Watch out now, it’s a MONSTER!

KEY FEATURES

• 6061 Aluminum Monster Quad frame with oversized downtube, integrated head tube and looptail rear end
• Full Cr-Mo Landing Gear forks
• SE Racing forged alloy 2-piece cranks with 24mm hollow alloy spindle, external sealed bearing bottom bracket and alloy chainring
• Vee Tire Co x SE Racing Speedster 29" x 2.8" tires
• Avid BB5 disc brakes with Tri-Align caliper positioning system, 160mm rear rotor, 180mm front rotor
• Authentic ODI Mushroom II grips with donuts
• Monster Flyer seat with bottle opener
• 33.6 pounds

SPECIFICATIONS

• COLOR(S): High Polish Silver
• FRAME: 6061 Aluminum, Single Downtube Monster Quad Design, Internally-machined Integrated Head Tube, Looptail Rear End, Retro Dropouts, 73mm Euro Bottom Bracket, 142mm Spaced Dropouts, Disc Brake Tabs
• FORK: Landing Gear, Full Cr-Mo, Disc Tabs, 445mm Axle to Crown, 39mm Offset, 110mm Spaced Dropouts
• CRANKSET: SE Racing 175mm Forged Alloy 2-pc Cranks, External Sealed Euro Bottom Bracket, 24mm Hollow Alloy Spindle, 39T Alloy Chainring,
• PEDALS: X-Pedo Low-profile Platform w/ Removable Pins
• CHAIN: KMC S1
• WHEELSET: Alloy 36H Nutted Hubs, Sealed Rear, 110mm Front Hub & 142mm Rear Hub, w/ 42mm Double-Wall Disc Rims, 20T Cassette, Stainless Spokes
• TIRES: Vee Tire Co x SE Racing Speedster, 29" x 2.8" Front & Rear
• BRAKESET: Avid BB5, Mechanical Disc, Easy to Adjust w/ Tri-Align Caliper Positioning System, 180mm Front Rotor, 160mm Rear Rotor
• BRAKE LEVERS: Tektro MT2.1, 2-Finger Alloy, Front & Rear
• HEADSET: FSA Orbit CE, Sealed 1-1/8" Integrated
• HANDLEBAR: Big Honkin' Cr-Mo Cruiser Bar, 29" x 6", 10° Backsweep, 1° Upsweep
• STEM: Retro Alloy Top-Load w/ Engraved SE Logo & Lightweight Cutouts, 55mm Reach
• GRIPS: Special Edition ODI Mushroom II Dual-Ply Grips, Made in USA, w/ SE Donuts,
• SEAT: Monster Flyer Seat w/ Custom SE Bottle Opener Brace
• SEATPOST: Micro-Adjust Alloy, 27.2mm
• SEAT CLAMP: Alloy, 31.8mm Inner Diameter
• ACCESSORIES: Alloy Valve Caps, SE Chain Tensioners
• WEIGHT: 33.6 lbs / 15.24 kgs

GEOMETRY

• TOP TUBE, ACTUAL: 23.5"
• SEAT TUBE, CENTER TO TOP: 16.9"
• SEAT TUBE ANGLE: 71°
• HEAD TUBE ANGLE: 71°
• CHAINSTAY LENGTH: 18.3"
• WHEELBASE: 43.9"
• BOTTOM BRACKET HEIGHT: 13"
• STANDOVER: 30.5"
• SUGGESTED RIDER SIZE: 5'5"+ (165cm+)
• STEM: 55mm
• HANDLEBAR WIDTH: 29"
• CRANK: 175mm
• WHEEL SIZE: 29"
• SEAT POST DIAMETER: 27.2mm
