SE Dub Edition Monster Ripper 29"+

When we connected with the DUB crew to develop a bike to celebrate their 20-year anniversary, we knew we had to do something big. So we collaborated to create the biggest Ripper ever, the all-new SE Dub Edition Monster Ripper 29"! This monster-sized bike is built with huge 29” x 2.8” DUB Edition Vee Speedster tires and features a legendary looptail rear end, Avid BB5 disc brakes, 2-piece alloy cranks, and an awesome DUB Show padset. Expect nothing less than the best when America’s largest custom car show tour aligns with the world’s largest Ripper.

KEY FEATURES

• 6061 Aluminum Monster DUB PK Ripper frame with oversized floval tubing, integrated head tube, seatstays wrap, and looptail rear end
• Full Cr-Mo Landing Gear forks
• SE Racing forged alloy 2-piece cranks with 24mm hollow alloy spindle, external sealed bearing bottom bracket and alloy chainring
• Vee Tire Co x DUB Edition Speedster 29" x 2.8" tires
• Avid BB5 disc brakes with Tri-Align caliper positioning system, 160mm rear rotor, 180mm front rotor
• Authentic ODI Mushroom II grips with DUB Edition donuts
• DUB Show 20th Anniversary padset
• 33.3 pounds

SPECIFICATIONS

• SUGGESTED RIDER SIZE: 5'5"+ (165cm+)
• COLOR(S): Black
• FRAME: 6061 Aluminum Floval Tubing, Internally-machined Integrated Head Tube, Looptail Rear End, Retro Dropouts, 73mm Euro Bottom Bracket, 142mm Spaced Dropouts, Disc Brake Tabs
• FORK: Landing Gear, Full Cr-Mo, Disc Tabs, 445mm Axle to Crown, 39mm Offset, 110mm Spaced Dropouts
• CRANKSET: SE Racing 175mm Forged Alloy 2-pc Cranks, External Sealed Euro Bottom Bracket, 24mm Hollow Alloy Spindle, 39T Alloy Chainring
• PEDALS: X-Pedo Low-profile Platform w/ Removable Pins
• CHAIN: KMC 51
• WHEELSET: Alloy 36H Nutted Hubs, Sealed Rear, 110mm Front Hub & 142mm Rear Hub, w/ 42mm Double-Wall Disc Rims, 20T Cassette, Stainless Spokes
• TIRES: Vee Tire Co x DUB Edition SE Racing Speedster, 29" x 2.8" Front & Rear
• BRAKESET: Avid BB5, Mechanical Disc, Easy to Adjust w/ Tri-Align Caliper Positioning System, 180mm Front Rotor, 160mm Rear Rotor
• BRAKE LEVERS: Tektro MT2.1, 2-Finger Alloy, Front & Rear
• HEADSET: FSA Orbit CE, Sealed 1-1/8" Integrated

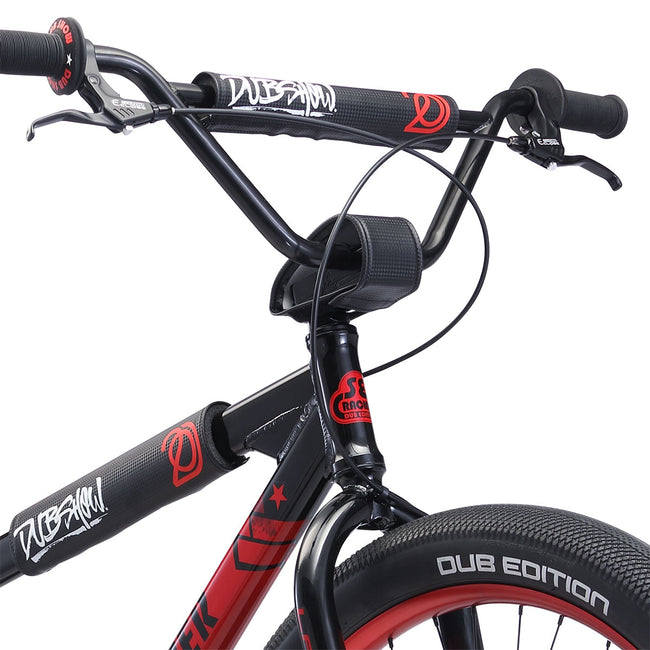

• HANDLEBAR: Big Honkin' Cr-Mo Cruiser Bar, 29" x 7", 12° Backsweep, 2° Upsweep
• STEM: Retro Alloy Top-Load w/ Engraved SE Logo on Top & Sides, 55mm Reach
• GRIPS: Special Edition ODI Mushroom II Dual-Ply Grips, Made in USA, w/ DUB Edition Donuts
• SEAT: DUB Edition Flyer Seat w/ Custom SE Bottle Opener Brace
• SEATPOST: Micro-Adjust Alloy, 27.2mm
• SEAT CLAMP: Alloy, 31.8mm Inner Diameter
• ACCESSORIES: DUB Edition Padset, Custom DUB Edition Sticke Sheet, Alloy Valve Caps, SE Chain Tensioners
• WEIGHT: 33.3 lbs / 15.10 kgs

*Specifications subject to change without notice

GEOMETRY

• TOP TUBE, ACTUAL: 23.5"
• SEAT TUBE, CENTER TO TOP: 17"
• SEAT TUBE ANGLE: 71°
• HEAD TUBE ANGLE: 71°
• CHAINSTAY LENGTH: 18.5"
• WHEELBASE: 44.1"
• BOTTOM BRACKET HEIGHT: 12.8"
• STANDOVER: 31"
• SUGGESTED RIDER SIZE: 5'5"+ (165cm+)
• STEM: 55mm
• HANDLEBAR WIDTH: 29"
• CRANK: 175mm
• WHEEL SIZE: 29"
• SEAT POST DIAMETER: 27.2mm
