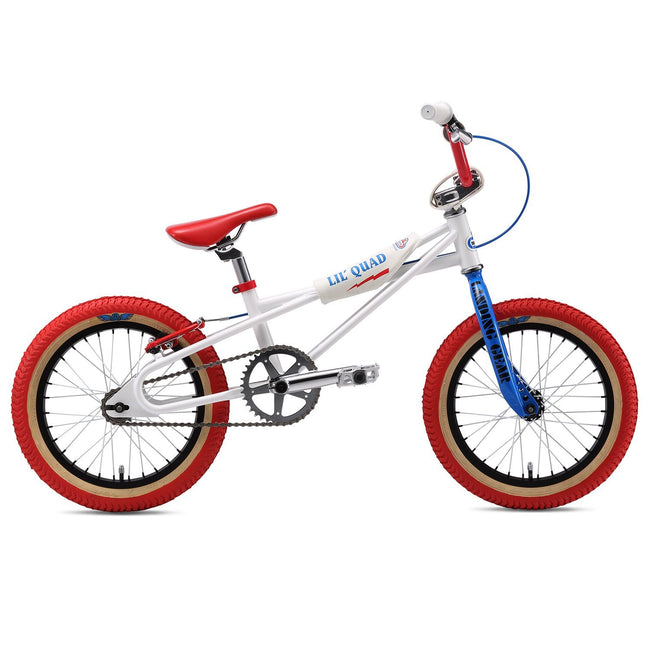

SE Racing Lil Quad 16" Bike - White

Designed around a mini version of the legendary Quadangle Looptail frame and mini Landing Gear forks, the 16” LiL’ Quad screams big radness. Now is the time for the youngsters to get a taste of some of that original SE radness.

• 16” Quadangle frame with double down tubes and legendary looptail rear end
• Mini Landing Gear forks
• 3-pc tubular Cr-Mo cranks
• Lightweight top-load stem with side cut-outs and hidden top cap for a clean look
• SE Racing LiL’ Quad Lightning Bolt padset, Wheelie pegs and alloy valve caps included
• 20.0 lbs
• SE Wheelie pegs

• COLOR(S): White
• FRAME: Classic Double Downtube, Looptail Rear End, Euro Bottom Bracket, Retro Dropouts
• FORK: LiL' Landing Gear
• CRANKSET: SE 3-pc Cr-Mo, 140mm, Euro-Sealed Bearing Bottom Bracket, 36T Chainring
• PEDALS: FPD Alloy Platform, Cr-Mo Axle
• CHAIN: KMC Z410A
• WHEELSET: SE Racing Alloy 32H Hubs w/ Alex C1000 rims, 16T Freewheel
• TIRES: Vee Tire Co VRB025 16" x 2.125" Front & Rear
• BRAKESET: Promax Mini V-Brake
• BRAKE LEVERS: Promax 2-Finger Alloy
• HEADSET: Tange 1-1/8" Threadless
• HANDLEBAR: SE Wing Bar, 23" x 5.5"
• STEM: SE Racing Top-Load Alloy w/ Weight-Saving Cutouts, Hidden Top Cap, 40mm Reach
• GRIPS: Mini Grips
• SEAT: SE Racing Mini Seat
• SEATPOST: Race Rocker Micro-Adjust Alloy, 25.4mm
• ACCESSORIES: LiL' Quad Padset, Alloy Valve Caps, SE Wheelie Pegs
• WEIGHT: 20 lbs / 9.07 kgs

Geometry

• TOP TUBE, ACTUAL: 16.5"
• SEAT TUBE, CENTER TO TOP: 7.7"
• SEAT TUBE ANGLE: 70°
• HEAD TUBE ANGLE: 72°
• CHAINSTAY LENGTH: 11.9"
• WHEELBASE: 30.6"
• BOTTOM BRACKET HEIGHT: 9.8"
• STANDOVER: 18.9"
• SUGGESTED RIDER SIZE: Under 5' (Under 152cm)
• STEM: 40mm
• HANDLEBAR WIDTH: 23"
• CRANK: 140mm
• WHEEL SIZE: 16"
• SEAT POST DIAMETER: 27.2mm
