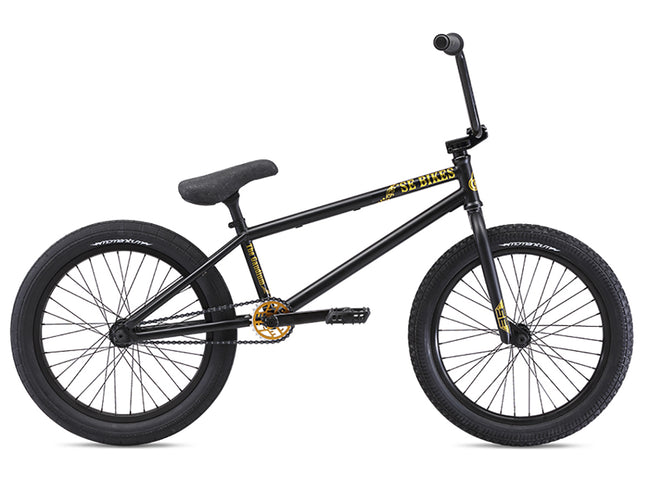

SE Racing Gaudium 21"TT Bike-Black

The SE Racing 2019 Gaudium is pure radness. This bike features a double-butted main frame, female axle hubs, Alienation rims, extra-wide 2.4” Demolition tires, and Odyssey pedals. It’s uniquely spec’d to Kris Fox’s personal preference. This is the bike for you if you’re longing for some of that amazing Kris Fox style.

FEATURES

• Kris Fox signature model, 100% Cr-Mo, double-butted main frame, integrated head tube, integrated seat clamp, machined mid-bottom bracket, micro dropouts, removable cable guides and brake mounts
• Full Cr-Mo tapered-leg SE forks with cut-out clearance for pegs
• SE Pivotal seat with lightweight nylon Pivotal seatpost
• Odyssey Springfield Brake Kit. Incredibly stiff brake arms, easy to adjust, and comes equipped with Odyssey brake lever, Quick Slic cable and Odyssey Ghost brake pads
• SE 3-pc V-Ridge cranks with 25-9 micro gearing and 6061 aluminum SE sprocket
• Odyssey Twisted plastic composite pedals
• Alienation Deviant and 440 double wall rims
• Rear hub with 4-sealed bearings and female axle, front hub with 2-sealed bearings and female axle
• Cr-Mo SE Powerwing bars
• Extra-wide 2.4” tires provide more traction and forgiveness on harsh landings
• 24.9 lbs

SPECIFICATIONS

• FRAME: Kris Fox Signature Model, 100% Cr-Mo, Double-Butted Main Frame, Integrated Seat Clamp, Integrated Head Tube, Externally Machined 73mm Mid BB, Removable Cable Guides & Brake Mounts
• FORK: Full Cr-Mo, Tapered Legs, 3/8" Dropouts w/ 32mm Offset
• CRANKSET: 3-pc Cr-Mo, 175mm, SE V-Ridge Cranks, Sealed Bearing Mid Bottom Bracket, 150mm Spindle Length, 19mm Spindle Diameter, 25T Alloy SE Sprocket
• PEDALS: Odyssey Twisted Plastic Composite
• CHAIN: KMC S1
• WHEELSET: SE Alloy 36H 3/8" Sealed Female Front & 14mm 4-Sealed Bearing Female Rear Hubs w/ Alienation Deviant Front & Alienation 440 Rear Double-wall Rims, 9T Driver
• TIRES: Demolition Machete 20" x 2.40" Front, Demolition Momentum 20" x 2.35" Rear
• BRAKESET: Odyssey Springfield, Odyssey Quick Slic Cable, Clearance For Wide Tires
• BRAKE LEVERS: Odyssey Springfield, 2-Finger Hinged Alloy
• HEADSET: FSA Orbit CE, Sealed 1-1/8" Integrated
• HANDLEBAR: Cr-Mo SE Powerwing Bar, 30" x 9", 10° Backsweep, 1° Upsweep
• STEM SE: Top-Load Alloy, Lightweight External Cutouts, Hidden Top Cap, 50mm Reach
• GRIPS SE: DSP Grips w/ Rubber SE End Plugs
• SEAT SE: Pivotal Seat w/ Padding
• SEATPOST: Pivotal Lightweight Nylon & Fiberglass, 25.4mm
• SEAT CLAMP: Integrated
• WEIGHT: 24.9 lbs / 11.29 kgs
• RECOMMENDED RIDER HEIGHT: 5' 8" and up

GEOMETRY

• TOP TUBE, ACTUAL: 21"
• SEAT TUBE, CENTER TO TOP: 9.5"
• SEAT TUBE ANGLE: 71°
• HEAD TUBE ANGLE: 75°
• CHAINSTAY LENGTH: 13.7"
• WHEELBASE: 36.3"
• BOTTOM BRACKET HEIGHT: 11.5"
• STANDOVER: 22.7"
• SUGGESTED RIDER SIZE: 5'3"+ (160cm+)
• STEM: 50mm
• HANDLEBAR WIDTH: 28.5"
• CRANK: 175mm
• WHEEL SIZE: 20"
• SEAT POST DIAMETER: 25.4mm
