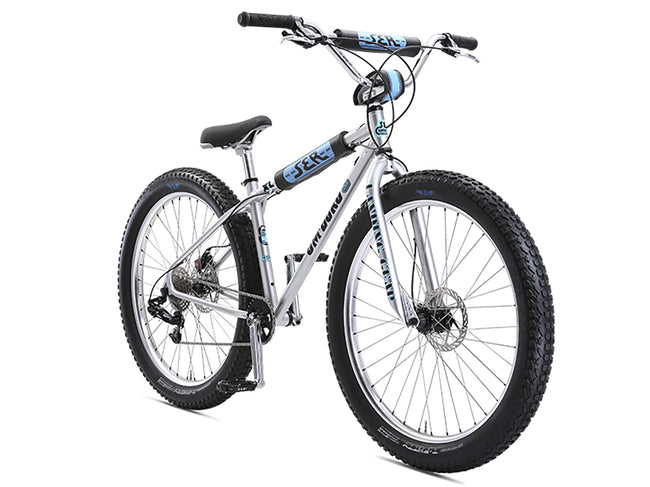

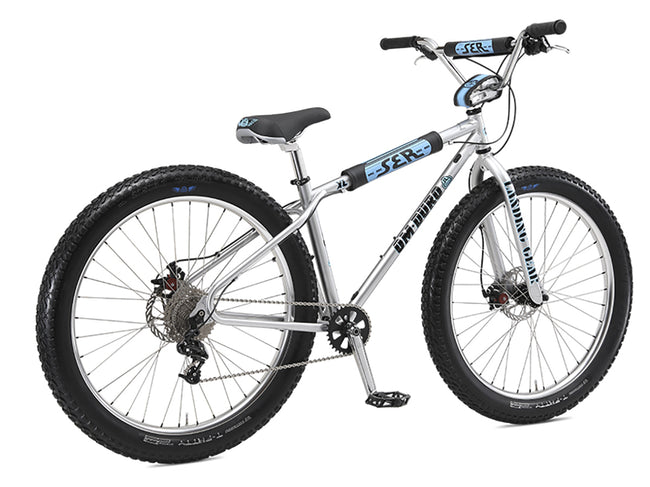

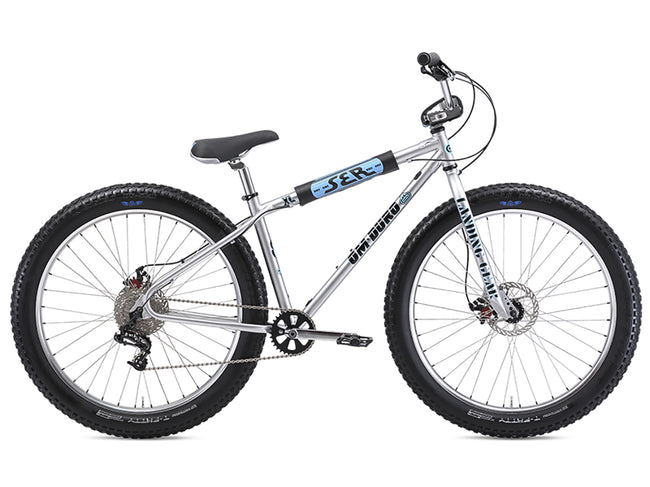

SE Racing OM-Duro 27.5+ Bike-Silver Sparkle

The SE Racing 2019 OM-Duro 27.5+ Bike-Silver Sparkle was created to celebrate the life and times of SE’s founder, Scot Breithaupt, and SE’s motto of “BMX Innovations”. The 27.5+ OM-Duro takes its design cues and aesthetics from the legendary OM Flyer and mixes in some radical mountain bike-style upgrades. This wildly unique bike comes in standard and XL sizes and features big 27.5 x 3.0” tires, a SRAM GX 1x10 drivetrain, Avid BB5 disc brakes front and rear, a new external bottom bracket, and internal cable routing for a dropper seatpost. BMX meets mountain bike; there are no boundaries.

RECOMMENDED RIDER HEIGHT:  5'5" and taller

• Cr-Mo OM-Duro frame with looptail rear end, Euro 73mm bottom bracket, 148mm dropout spacing, internal cable routing for dropper post, fixed dropouts and removable derailleur hanger
• Full Cr-Mo Landing Gear forks with 110mm-spaced dropouts
• 27.5” x 3.0” Vee Tire Co x SE Racing T-Fatty tires
• CNC alloy narrow/wide sprocket
• SRAM GX 1x10 derailleur, 10-speed 11-36T cassette
• SRAM GX 1x10, Trigger Shifter with exact actuation
• Avid BB5 disc brakes with Tri-Align caliper positioning system
• SE Flyer seat with bottle opener
• External bottom bracket
• SER padset
• Custom Scot Breithaupt OM-Duro sticker sheet
• 38 pounds

• COLOR(S) Silver Sparkle
• FRAME 100% Cr-Mo Tubing, Looptail Rear End, 73mm Euro Bottom Bracket, 148mm Spaced Fixed Dropouts, Internal Cable Routing for Dropper Post, Disc Brake Tabs, Vertical Dropouts, Removable Derailleur Hanger
• FORK Landing Gear, Full Cr-Mo, Disc Tabs, 450mm Axle to Crown, 38mm Offset, 110mm Spaced Dropouts
• CRANKSET SE V-Ridge 3-pc Cr-Mo, Cranks, 175mm, External Sealed Bearing Euro Bottom Bracket, 160mm Spindle Length, 19mm Spindle Diameter, 32T CNC Alloy Narrow/Wide Sprocket
• PEDALS X-Pedo Low-profile Platform w/ Removable Pins

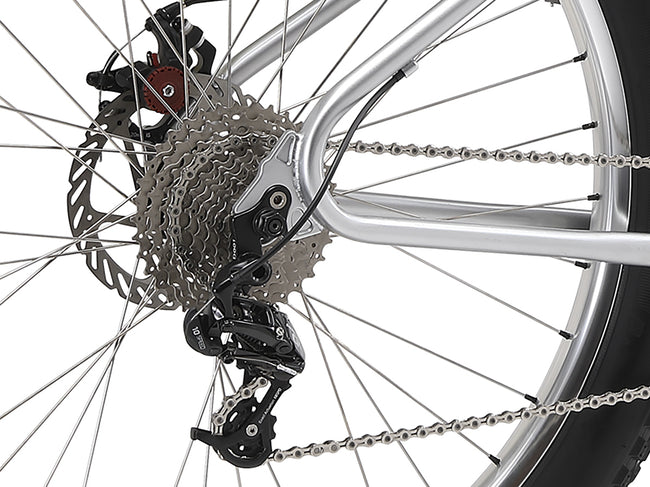

• REAR DERAILLEUR SRAM GX 1x10, Short Cage
• SHIFTERS SRAM GX 1x10, Trigger Shifter, Exact Actuation, Alloy Lever
• CASSETTE Shimano Deore CS-HG50, 10-speed, 11-36T
• CHAIN KMC X10EL
• WHEELSET Alloy 36H Nutted Hubs, Sealed Rear, 110mm Front Hub & 148mm Rear Hub, w/ 42mm Double-Wall Disc Rims, 11-36T 10-speed Cassette, Stainless Spokes
• TIRES Vee Tire Co x SE Racing T-Fatty, 27.5" x 3.0" Front & Rear
• BRAKESET Avid BB5, Mechanical Disc, Easy to Adjust w/ Tri-Align Caliper Positioning System, 160mm Rotor, Front & Rear
• BRAKE LEVERS Tektro MT2.1, 2-Finger Alloy Front & Rear
• HEADSET Tange 1-1/8" Threadless

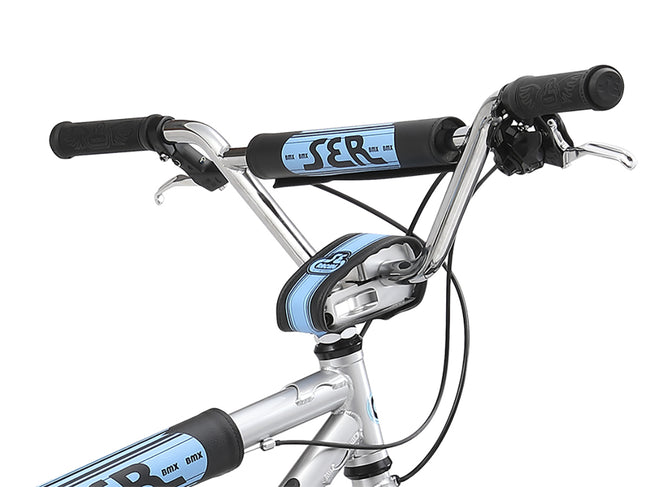

• HANDLEBAR Big Honkin' Cr-Mo Cruiser Bar, 31" x 6", 10° Backsweep, 1° Upsweep
• STEM Retro Alloy Top-Load w/ Engraved SE Logo & Lightweight Cutouts, 55mm Reach
• GRIPS SE Racing Flangeless Mushroom Wing Grips w/ SE Rubber End Plugs
• SEAT SE Flyer Seat w/ Custom SE Bottle Opener Brace
• SEATPOST Micro-Adjust Alloy, 30.9mm
• SEAT CLAMP Alloy, 34.9mm Inner Diameter
• ACCESSORIES Vintage Vinyl SER Padset, Alloy Valve Caps, Water Bottle Mounts
• WEIGHT 38 lbs / 17.23 kgs

SPECIFICATIONS

• A TOP TUBE, ACTUAL 22.3"
• A1 TOP TUBE, EFFECTIVE 23.2"
• B SEAT TUBE, CENTER TO TOP 16.1"
• C SEAT TUBE ANGLE 73°
• D HEAD TUBE ANGLE 71°
• E CHAINSTAY LENGTH 17.5"
• F WHEELBASE 42.3"
• G BOTTOM BRACKET HEIGHT 12.4"
• H STANDOVER 30.5"
• SUGGESTED RIDER SIZE 5'3"+ (160cm+)
• STEM 55mm
• HANDLEBAR WIDTH 31"
• CRANK 175mm
• WHEEL SIZE 27.5"
• SEAT POST DIAMETER 30.9mm
