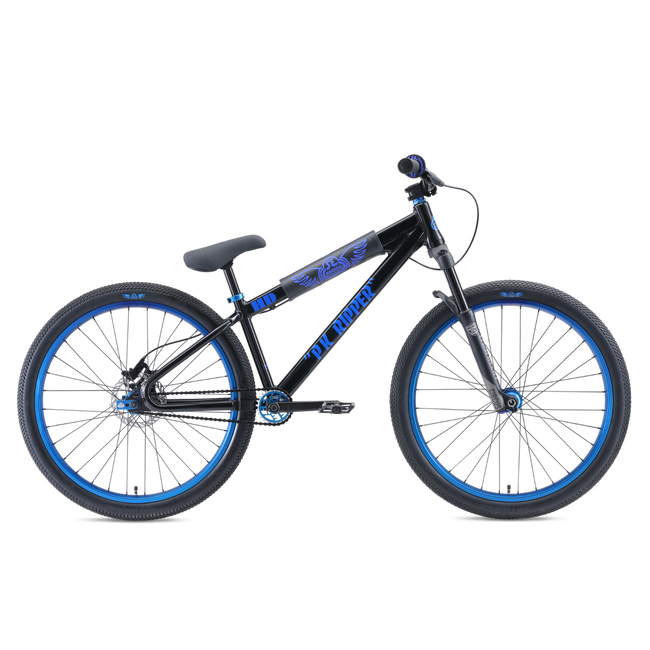

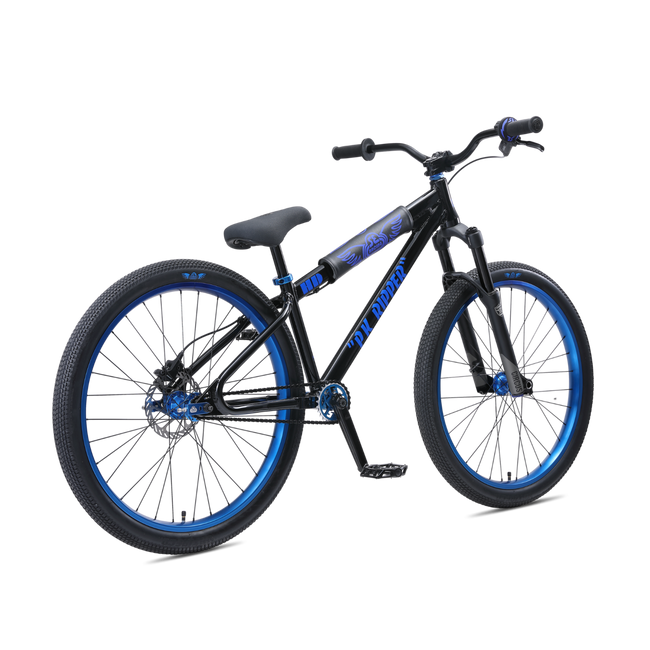

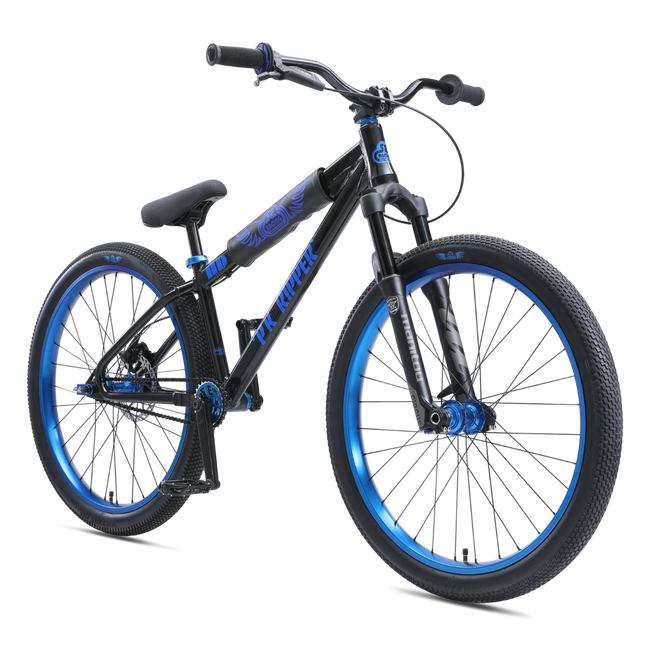

SE Racing DJ Ripper HD 26" BMX Bike-Black/Blue

The SE Racing 2020 DJ Ripper HD 26" BMX Bike-Black/Blue is an upgraded version of the 26” DJ Ripper using the same legendary PK Ripper frame design as the standard DJ Ripper, but with upgrades galore. The bike comes equipped with Manitou Circus Expert air compression forks that feature a 20mm thru-axle and an externally adjustable compression to lockout and rebound. The upgraded SRAM Level hydraulic disc brakes feature a 2-piston caliper and expandable bladder. The all-new DJ Ripper HD is definitely the baddest dirt jumper around.


KEY FEATURES

• 6061 aluminum frame with floval tubing featuring a symmetrical looptail rear end and 1-1/8"-1.5" tapered integrated head tube
• Manitou Circus Expert air compression forks with 100mm travel, 1.5" tapered alloy steerer tube, 20mm thru axle, and external adjustable compression to lockout & rebound
• 6061 aluminum handlebars with 31.8mm clamp area
• SRAM Level hydraulic disc brakes with 2-piston calipers and SRAM Direct Link Level brake levers

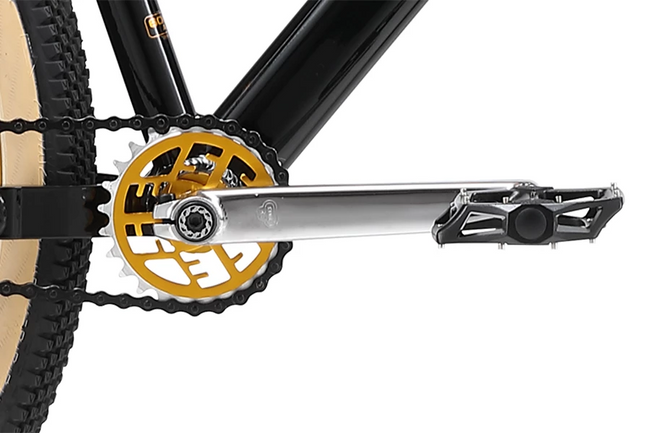

• SE 3-piece V-Ridge cranks with outboard bottom bracket and alloy SE chainring
• Authentic ODI Mushroom II grips with donuts
• External bottom bracket
• Padded SE Pivotal seat
• Vee Tire Co Two Six DJ tires
• SE Racing top tube pad
• 28 lbs / 12.70 kgs

DETAILS

• COLOR(S) Black
• FRAME 6061 Aluminum Floval Tubing, Symmetrical Looptail Rear End, 1-1/8"-1.5" Tapered Integrated Head Tube, Seatstays Wrap,Disc Brake Tabs, 73mm Euro Bottom Bracket, 135mm Spaced Dropouts

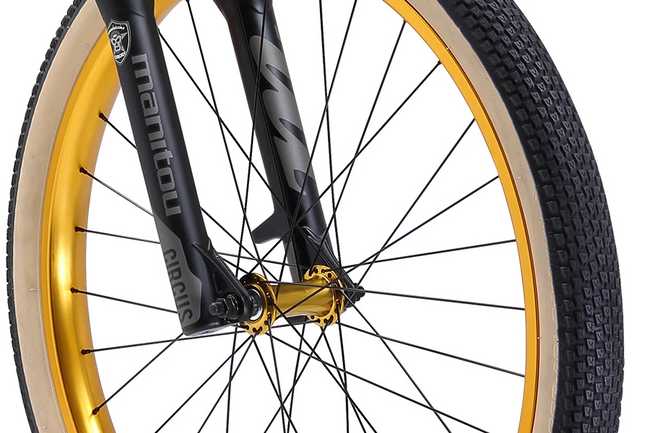

• FORK Manitou Circus Expert, 100mm Travel, 1.5" Tapered Alloy Steerer Tube, Hexlock 20mm Thru Axle, ABS+ Externally Adjustable Compression to Lockout & Rebound, Alloy Stanchions, ACT Air, Internal Shim Stack High Speed Damping
• CRANKSET SE V-Ridge 3-pc Cr-Mo, Cranks, 175mm, External Sealed Euro Bottom Bracket, 160mm Spindle Length, 19mm Spindle Diameter, 25T Alloy SE Racing Sprocket
• PEDALS X-Pedo Low-profile Platform w/ Removable Pins
• CHAIN KMC S1
• WHEELSET Alloy 32H, 20mm Thru Axle 110mm Sealed Front Hub, Nutted 135mmm Sealed Rear Hub, w/ 35mm Double-Wall Rims, 12T Cassette, Stainless Spokes
• TIRES Vee Tire Co Two Six DJ, 26 x 2.25" Front, 26 x 2.125" Rear

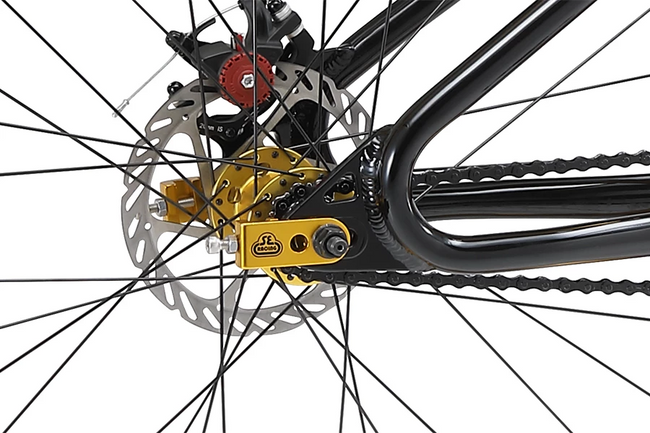

• BRAKESET SRAM Level, Hydraulic Disc, 2-Piston Caliper, 160mm Rotor, Expandle Bladder, Timing Port Closure, DOT 5.1 Fluid
• BRAKE LEVERS SRAM Direct Link Level, Alloy
• HEADSET FSA NO.42/ACB-A Sealed 1-1/8"-1.5" Tapered, Integrated Headset
• HANDLEBAR 6061 Aluminum, 29" x 2.5", 10° Backsweep, 2° Upsweep, 31.8mm Clamp Area
• STEM Alloy Front Load, Light Weight Cutouts, 31.8mm Clamp, 40mm Reach
• GRIPS Special Edition ODI Mushroom II Dual-Ply Grips, Made in USA, w/ SE Donuts,

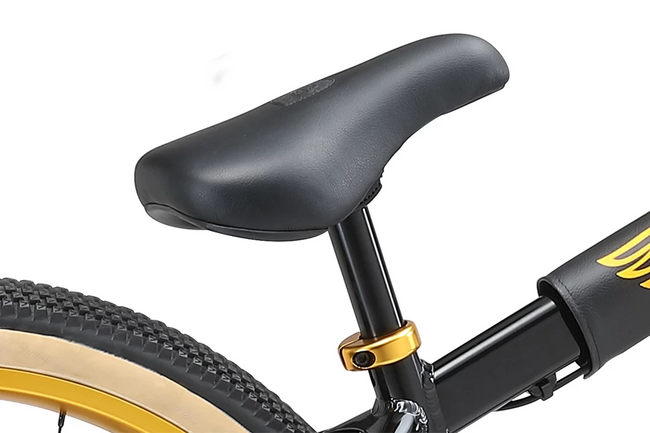

• SEAT SE Pivotal Seat w/ Padding
• SEATPOST Pivotal Alloy, 27.2mm
• SEAT CLAMP SE Racing Champ Clamp, Alloy, 31.8mm Inner Diameter
• ACCESSORIES SE Racing Wing Top Tube Pad, Alloy Valve Caps
• WEIGHT 28 lbs / 12.70 kgs

SPECIFICATIONS

• A TOP TUBE, ACTUAL 22.8"
• B SEAT TUBE, CENTER TO TOP 12.8"
• C SEAT TUBE ANGLE 71°
• D HEAD TUBE ANGLE 69°
• E CHAINSTAY LENGTH 15.4"
• F WHEELBASE 41.6"
• G BOTTOM BRACKET HEIGHT 13.2"
• H STANDOVER 29.5"
• SUGGESTED RIDER SIZE 5'3"+ (160cm+)
• STEM 40mm
• HANDLEBAR WIDTH 29"
• CRANK 175mm
• WHEEL SIZE 26"
• SEAT POST DIAMETER 27.2mm
