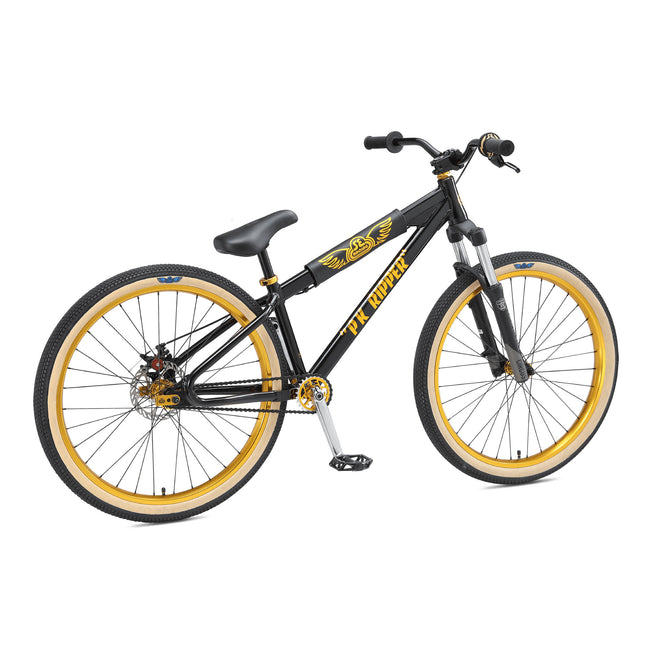

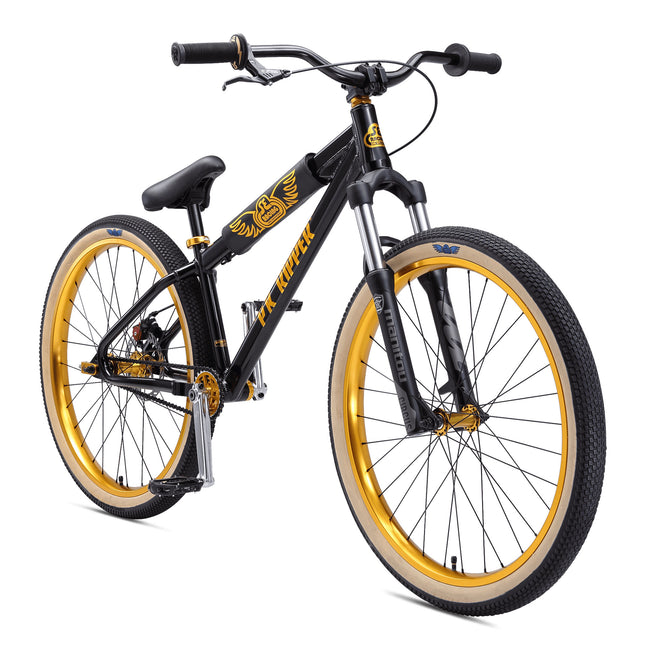

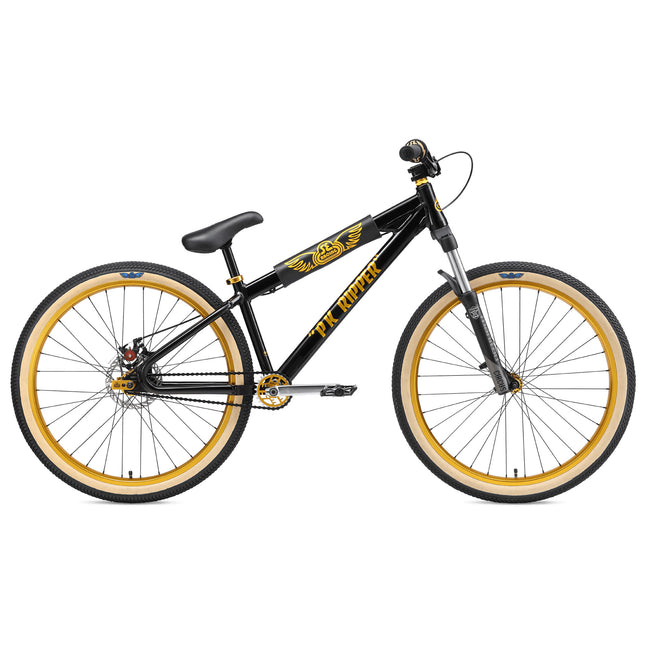

SE Bikes DJ Ripper 26" BMX Bike-Black

A PK Ripper like you’ve never seen before! The SE Racing DJ Ripper  26" BMX Bike-Black takes the design elements of the classic PK Ripper and wraps them into a 26” dirt jumper that will blow your mind. The frame features our legendary floval tubing, looptail rear end, and tapered integrated head tube. The frame is then matched up with Manitou Circus Sport forks, 25-12 gearing with outboard BB, Avid BB5 disc brake, 31.8mm stem & bars, and an SE Pivotal seat. The dirt jumps are calling!

KEY FEATURES

• 6061 aluminum frame with floval tubing featuring a symmetrical looptail rear end and 1-1/8"-1.5" tapered integrated head tube
• Manitou Circus Sport forks with 100mm travel and 1.5" tapered steerer tube
• 6061 aluminum handlebars with 31.8mm clamp area
• Avid BB5 disc brakes with Tri-Align caliper positioning system
• SE 3-piece V-Ridge cranks with outboard bottom bracket and alloy SE chainring
• Authentic ODI Mushroom II grips with donuts
• External bottom bracket
• Padded SE Pivotal seat
• Vee Tire Co Two Six DJ tires
• SE Racing top tube pad
• 28.8 pounds

SPECIFICATIONS

• SUGGESTED RIDER SIZE: 5'3"+ (160cm+)
• COLOR(S): Black
• FRAME: 6061 Aluminum Floval Tubing, Symmetrical Looptail Rear End, 1-1/8"-1.5" Tapered Integrated Head Tube, Seatstays Wrap,Disc Brake Tabs, 73mm Euro Bottom Bracket, 135mm Spaced Dropouts
• FORK: Manitou Circus Sport, 100mm Travel, Fluid Flow Dampinng, Firm Spring
• CRANKSET: SE V-Ridge 3-pc Cr-Mo, Cranks, 175mm, External Sealed Euro Bottom Bracket, 160mm Spindle Length, 19mm Spindle Diameter, 25T Alloy SE Racing Sprocket
• PEDALS: X-Pedo Low-profile Platform w/ Removable Pins
• CHAIN: KMC S1
• WHEELSET: Alloy 32H Nutted Hubs, Sealed Rear, 100mm Front Hub & 135mm Rear Hub, w/ 35mm Double-Wall Rims, 12T Cassette, Stainless Spokes
• TIRES: Vee Tire Co Two Six DJ, 26 x 2.25" Front, 26 x 2.125" Rear
• BRAKESET: Avid BB5, Mechanical Disc, Easy to Adjust w/ Tri-Align Caliper Positioning System, 160mm Rotor
• BRAKE LEVERS: Tektro MT2.1, 2-Finger Alloy
• HEADSET FSA: NO.42/ACB-A Sealed 1-1/8"-1.5" Tapered, Integrated Headset
• HANDLEBAR: 6061 Aluminum, 29" x 2.5", 10° Backsweep, 2° Upsweep, 31.8mm Clamp Area
• STEM: Alloy Front Load, Light Weight Cutouts, 31.8mm Clamp, 40mm Reach
• GRIPS: Special Edition ODI Mushroom II Dual-Ply Grips, Made in USA, w/ SE Donuts,
• SEAT: SE Pivotal Seat w/ Padding
• SEATPOST: Pivotal Alloy, 27.2mm
• SEAT CLAMP: SE Racing Champ Clamp, Alloy, 31.8mm Inner Diameter
• ACCESSORIES: SE Racing Wing Top Tube Pad, Alloy Valve Caps
• WEIGHT: 28.8 lbs / 13.06 kgs

*Specifications subject to change without notice

GEOMETRY

• TOP TUBE, ACTUAL: 22.8"
• SEAT TUBE, CENTER TO TOP: 12.8"
• SEAT TUBE ANGLE: 71°
• HEAD TUBE ANGLE: 69°
• CHAINSTAY LENGTH: 15.4"
• WHEELBASE: 41.6"
• BOTTOM BRACKET HEIGHT: 13.2"
• STANDOVER: 29.5"
• STEM: 40mm
• HANDLEBAR WIDTH: 29"
• CRANK: 175mm
• WHEEL SIZE: 26"
• SEAT POST DIAMETER: 27.2mm
