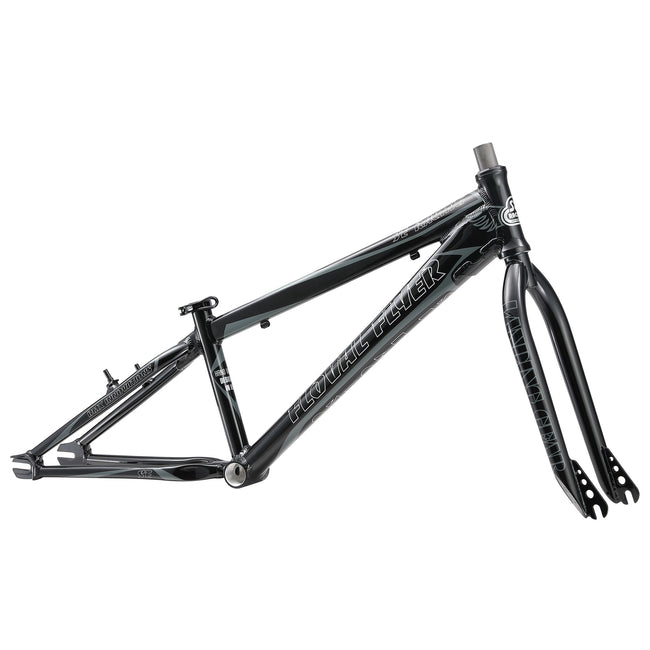

SE Racing Floval Flyer 24" BMX Race Frame-Fast Black

The SE Racing Floval Flyer 24" BMX Race Frame stands out with its ideal cruiser class geometry, offering unmatched stiffness thanks to its advanced design. Built from lightweight 6066 aluminum, this frame features tapered rear stays and 3-D forged dropouts for exceptional durability and performance. Equipped with Cr-Mo tapered leg Landing Gear forks, a sealed Tange integrated headset, and a Promax QR-1 quick release seat clamp, it ensures smooth handling and quick adjustments. Weighing just 3.5 pounds, the Floval Flyer is the ultimate choice for BMX racers seeking speed and agility.

FEATURES

• Lightweight 6066 aluminum frame built with Floval top tube, bi-oval down tube, tapered rear stays and 3-D forged dropouts for maximum stiffness

• Cr-Mo tapered leg Landing Gear forks

• Sealed Tange integrated headset

• Promax QR-1 quick release seat clamp

• FSA sealed bearing integrated headset

• 3.5 pound frame weight

SPECIFICATIONS

• Suggested Rider Size:
  • Pro: 5'4"+ (162cm+)

  • Pro XL: 5'6"+ (168cm+)
• Frame: Lightweight 6066 Aluminum Floval Tubing, Internally-machined Integrated Head Tube, Bi-Oval Down Tube, 68mm Wide BB, Tapered Rear Stays, 3D-Forged Dropouts

• Fork: Landing Gear 2, Full Cr-Mo, Tapered Legs
• Headset: Neco Sealed 1-1/8" Integrated
• Seat Clamp: Promax Quick Release, 31.8mm Inner Diameter
• Accessories: SE Chain Tensioners
• Weight:
  • Pro: Frame 3.5 lbs / 1.57 kgs, Fork 2.6 lbs / 1.17 kgs
  • Pro XL: Frame: 3.6 lbs / 1.63 kgs, Fork: 2.6 lbs / 1.17 kgs

GEOMETRY

Pro 24"

SUGGESTED RIDER SIZE: 5'4"+ (162cm+)

• A-TOP TUBE, ACTUAL: 21.2"
• B-SEAT TUBE, CENTER TO TOP: 10.8"
• C-SEAT TUBE ANGLE: 73°
• D-HEAD TUBE ANGLE: 73.5°
• E-CHAINSTAY LENGTH: 15.4"
• F-WHEELBASE: 38.6"
• G-BOTTOM BRACKET HEIGHT: 12"
• H-STANDOVER: 25.2"

Pro XL 24"

SUGGESTED RIDER SIZE: 5'6"+ (168cm+)

• A-TOP TUBE, ACTUAL: 22"
• B-SEAT TUBE, CENTER TO TOP: 10.8"
• C-SEAT TUBE ANGLE: 73°
• D-HEAD TUBE ANGLE: 73.5°
• E-CHAINSTAY LENGTH: 15.4"
• F-WHEELBASE: 39.4"
• G-BOTTOM BRACKET HEIGHT: 12"
• H-STANDOVER: 25.2"
