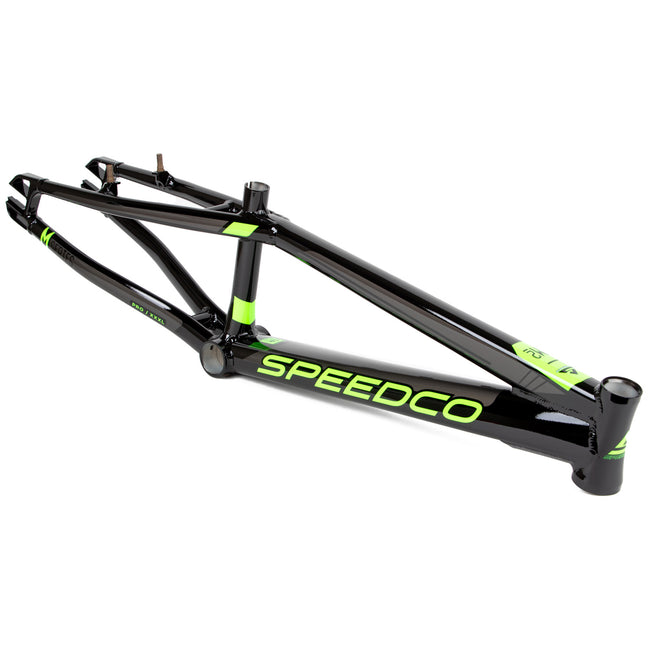

SpeedCo M2 Alloy BMX Race Frame-Black/Gray/Neon - 1

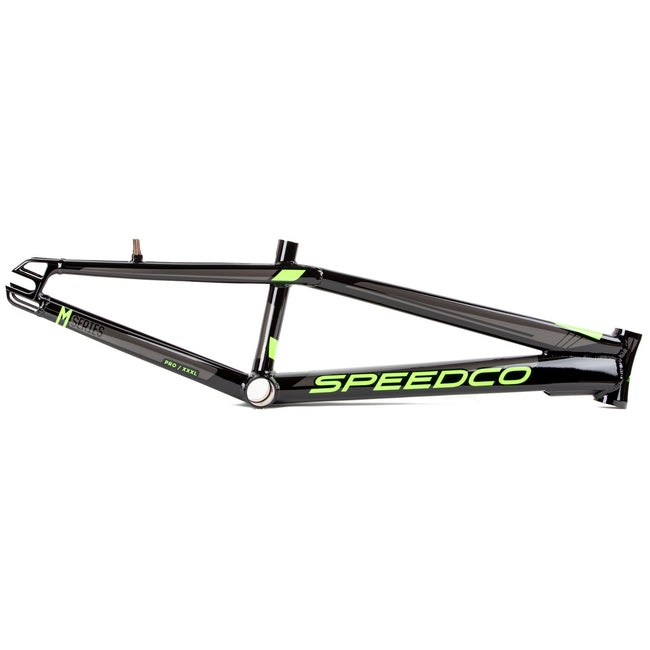

SpeedCo M2 Alloy BMX Race Frame-Black/Gray/Neon - 2

SpeedCo M2 Alloy BMX Race Frame-Black/Gray/Neon

Save 45%
$299.88 $549.95
  • Mini XL
Secure Checkout

About This Product: SpeedCo M2 Alloy BMX Race Frame-Black/Gray/Neon

The Speedco M2 Alloy BMX Race Frame-Black/Gray/Neon is loaded with hi-tech design features and construction elements to deliver max performance at high speed. Built from heat-treated and double butted 7005 aluminum alloy, the M2 is designed after the popular Velox Carbon models, with added strength and reduced weight. Featuring an oversized down-tube that tapers a bit throughout the size range, the M2 series gives riders of all weights the perfect frame stiffness they need to achieve peak race performance. A wider down-tube and chainstay mean the BB86 delivers efficient power whether out of the gate, in the straights or hugging the corners. The dropouts on the M2 use two flex-free adapters to keep your wheel secure and you won't need to over-tighten the wheel thanks to the integrated chain tensioner. Smooth and efficient power delivery at a budget-friendly price.

FEATURES

  • BB86: There are 3 popular bottom bracket standards for BMX – euro, BB30, and BB86. A euro is a threaded BB, the shell is 68mm wide and it uses 24mm (92mm total) of outboard bearings and a 24mm crank spindle. A BB30 is similar, 68mm shell but promotes a larger crank spindle (30mm) therefore a larger spindle to flex the same narrow bottom bracket junction. The M2 Alloy uses a BB86 which is a 86mm BB shell and press-fit bearings that equal 4mm added to the 86mm shell (92mm total) while using a 24mm spindle. The advantage to our BB is the wider down-tube and chain-stay described above. Rigidity is key for first straight pull and accelerating out of turns, while a flimsy frame will just get you cut off out of the gate.
  • 10/15mm dropout: The dropout on the M2 Alloy is all about efficiency. With an integrated chain tensioner through the front of the dropout, the need to over-tighten your wheel has been eliminated. Each dropout uses two flex-free 4mm adapters to insure your wheel isn’t gonna move regardless of how many horses you’re putting down first pedal.
  • Tapered head tube: The standard for high-end race frames is a tapered head tube. A tapered head tube uses a 1-1/8” top bearing and a 1.5” bottom bearing and allows us to use a fork both lighter and stronger than ever before.
  • Tubeset: The M2 features a fully double-butted 7005-aluminum tube set. The massive down-tube tapers 52mm to 72mm top to bottom, which eliminates flex and allows your power to be efficiently converted to speed as you accelerate from the gate, and corners.

GEOMETRY

Speedco M2 Alloy BMX Race Frame Geometry
MODEL NAME TOP TUBE BB HEIGHT REAR CENTER SEAT TUBE ANG HEAD TUBE ANG WEIGHT
MODEL NAME: Pro 20" TOP TUBE: 20.5" BB HEIGH: 11.5" REAR CENTER: 14.75" SEAT TUBE ANG: 72 HEAD TUBE ANG: 74 WEIGHT: 3.7lbs
MODEL NAME: Pro XL 20" TOP TUBE: 21" BB HEIGH: 11.5" REAR CENTER: 14.75" SEAT TUBE ANG: 72 HEAD TUBE ANG: 74 WEIGHT: 3.75.lbs
MODEL NAME: Pro XL+ 20" TOP TUBE: 21.35" BB HEIGH: 11.5" REAR CENTER: 14.75" SEAT TUBE ANG: 72 HEAD TUBE ANG: 74 WEIGHT: 3.8lbs
MODEL NAME: Pro XXL 20" TOP TUBE: 21.75" BB HEIGH: 11.5" REAR CENTER: 15.2" SEAT TUBE ANG: 72 HEAD TUBE ANG: 74 WEIGHT: 3.85lbs
MODEL NAME: Pro XXXL 20" TOP TUBE: 22" BB HEIGH: 11.5" REAR CENTER: 15.2" SEAT TUBE ANG: 72 HEAD TUBE ANG: 74 WEIGHT: 3.95lbs
MODEL NAME: Pro 24" TOP TUBE: 21" BB HEIGH: 12" REAR CENTER: 15.4" SEAT TUBE ANG: 69.5 HEAD TUBE ANG: 73 WEIGHT: 3.85lbs
MODEL NAME: Pro XL 24" TOP TUBE: 21.75" BB HEIGH: 12" REAR CENTER: 15.4" SEAT TUBE ANG: 69.5 HEAD TUBE ANG: 73 WEIGHT: 3.95lbs
MODEL NAME: Pro XXL 24" TOP TUBE: 22.75" BB HEIGH: 12" REAR CENTER: 15.4" SEAT TUBE ANG: 69.5 HEAD TUBE ANG: 73 WEIGHT: 4.1lbs

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:
