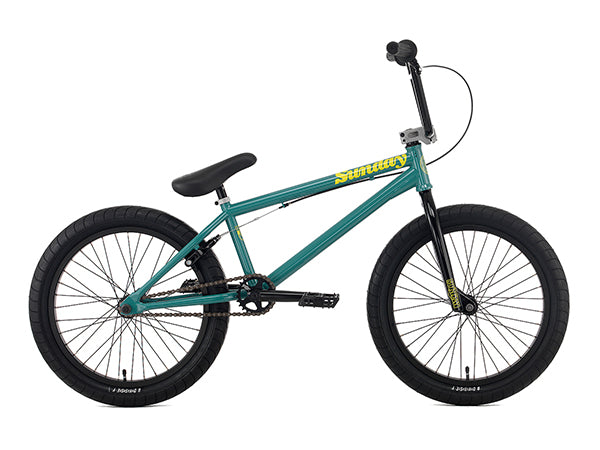

Sunday AM BMX Bike-20"TT-Slate Blue

The Sunday 2015 AM 20"TT complete BMX bike features a sealed MID bottom bracket, integrated headset, semi-sealed 9T driver, CrMo down tube and Odyssey Springfield brakes.



FRAME SPECS:
Top tube Length: 20"
Chainstay Length: 13.25”-13.5"
Headtube Angle: 75°
Seattube Angle: 71°

Recommended Rider Height: 4' 10" - 5' 5"

FRAME: 20" TT, Chromoly Down Tube and Dropouts
FORK: AM w/ Chromoly Dropouts
HANDLEBAR: Sunday 9" Rise, 12° Back, 4° Upsweep
STEM: Sunday Freeze Front-Load Stem 48mm
HEADSET: Sunday Integrated
HEADSET CAP: Sunday M6 Pre-Load Bolt
BRAKE LEVER: Odyssey Springfield
BRAKE: Odyssey Springfield
BRAKE CABLE: Odyssey Quik Slic
GRIPS: Odyssey Aaron Ross Signature
SEAT: Sunday Tripod
SEAT POST: Tripod
SEAT CLAMP: Sunday
SPROCKET: Sunday, 25T, Steel
CRANKS: 170mm, 3-piece, Chromoly
BB PARTS: 19mm Sealed Mid
PEDALS: Odyssey Twisted PC
RIMS: Sunday Lightning Rim 36H
FRONT HUB: Sunday, 36H, Low-Flange, Looseball
REAR HUB: Sunday, 36H, Semi-Sealed, 9T
SPOKES: Steel Black
TIRES: Odyssey OEM Chase Hawk Signature, 20 x 2.4" (F&R, 65 PSI, Single-Ply Version)
CHAIN: KMC Z510H

WEIGHT:  26.82lbs

NOTE: As with any complete bike, J&R Bicycles recommends that you have a professional bicycle store build your bike. Bikes ordered through mail-order come partially assembled and need to be inspected and assembled by a bicycle mechanic. Failure to do so may void the manufacture's warranty. Manufacture's warranties differ for every brand. You can check the brand's website for warranty information.
