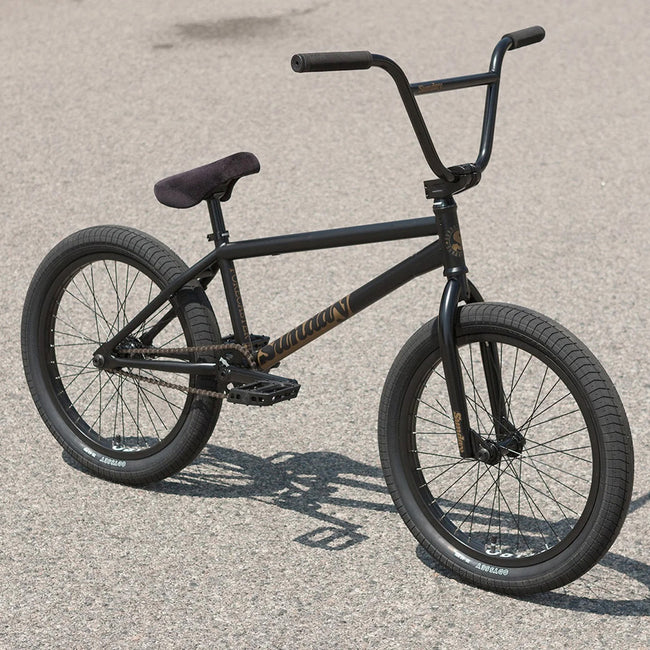

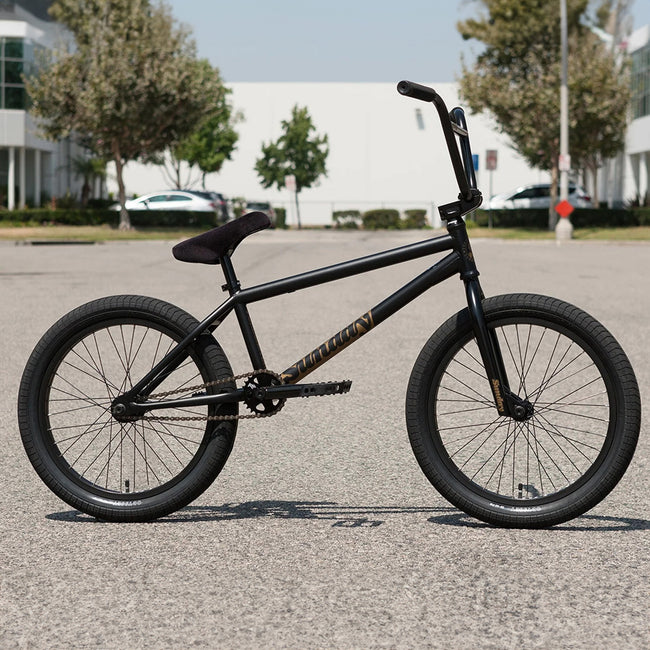

Sunday Forecaster RHD 21"TT BMX Bike-Matte Black Broc Raiford Signature

The Sunday Forecaster RHD 21"TT BMX Bike is a Raiford signature model with pro-level parts and engineering. Featuring a 100% chromoly frame with Broc's signature components like Odyssey BROC Grips and Odyssey Broc Pivotal Seat. Other high-quality parts include the Odyssey Clutch v2 Freecoaster hub, Odyssey Twisted Pro pedals, and Path Pro tires. The Sunday Forecaster Broc Raiford Signature bike provides a killer pro-level ride at a budget-friendly price.

FEATURES

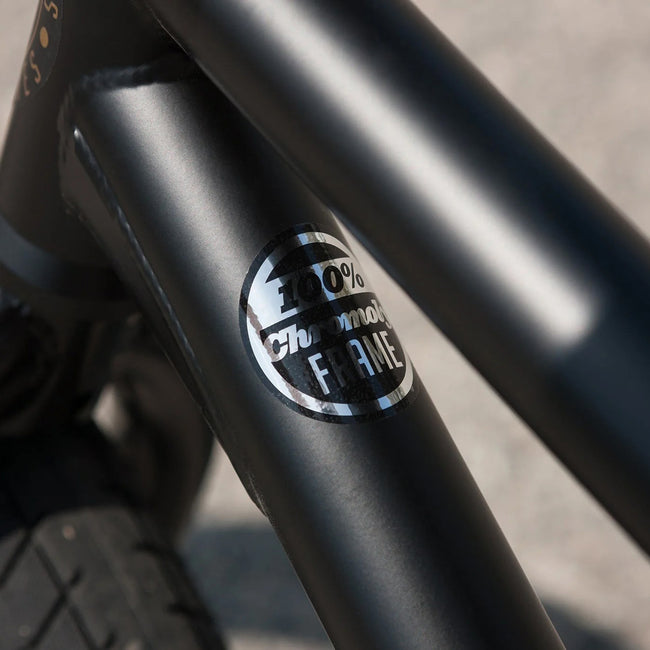

• 100% Chromoly Frame
• Odyssey Clutch v2 Freecoaster
• Sealed Front and Rear Hubs
• Odyssey Stage 1 Rims
• Removable Brake Hardware
• Odyssey BROC Grips
• Odyssey Twisted Pro Pedals
• Sunday Freeze Top Load Stem
• Odyssey Springfield Brakes and Lever
• Odyssey Path Pro OEM 2.40" Tires
• Odyssey Broc Pivotal Seat
• FSA Conical Headset

SPECIFICATIONS

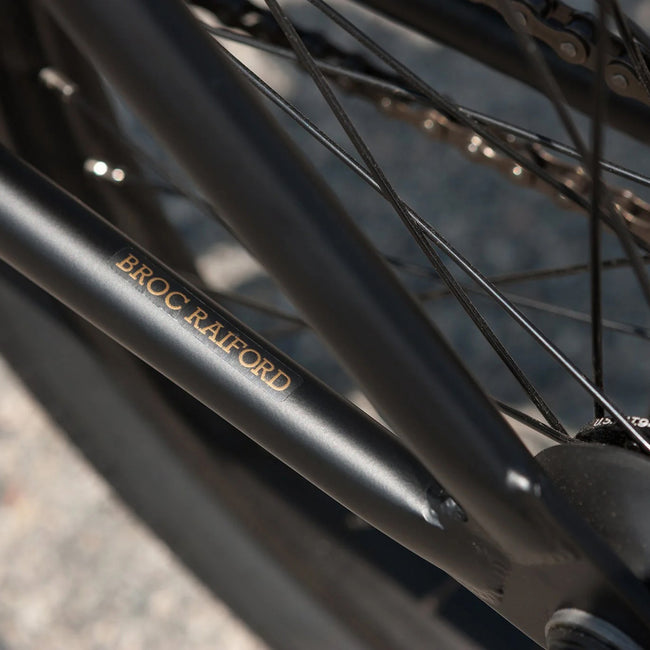

• Frame: Sunday Forecaster, 21" TT, 100% chromoly frame with integrated 1-1/8" head tube, and removable brake hardware

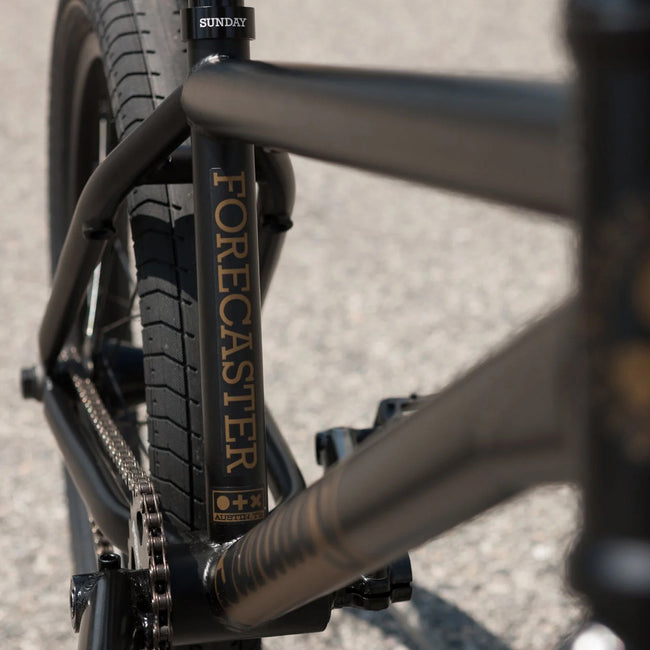

• Fork: Sunday Forecaster, 20" fork w/ 2-piece chromoly steerer tube and welded pre-load
• Handlebar: Sunday, 2-piece
• Stem: Sunday Freeze front load, 48mm

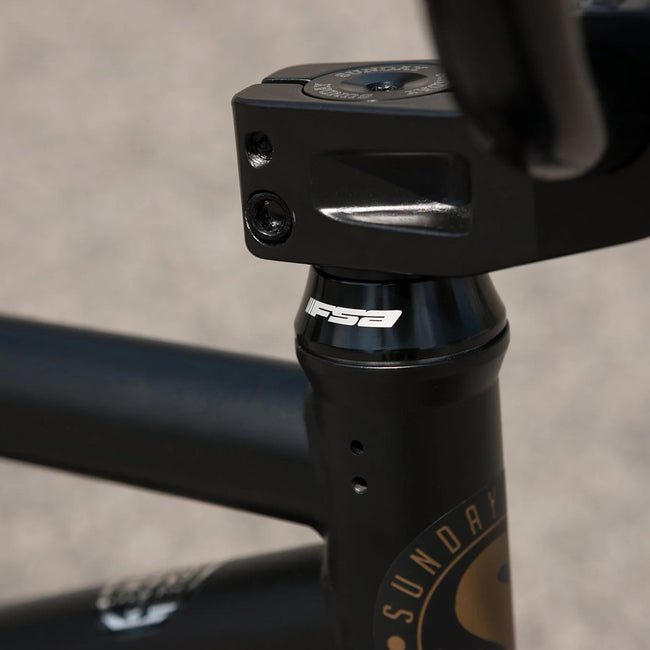

• Headset: FSA integrated conical, 1-1/8"
• Alloy Cap: Sunday M16, aluminum
• Brake Lever: Odyssey Springfield
• Brakes: Odyssey Springfield U-brake
• Brake Cable: Odyssey Quik Slic

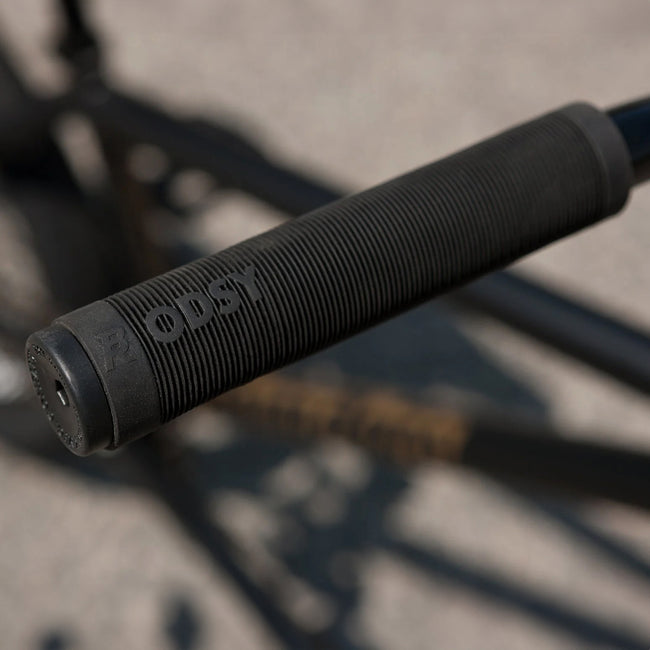

• Grips: Odyssey Broc Raiford

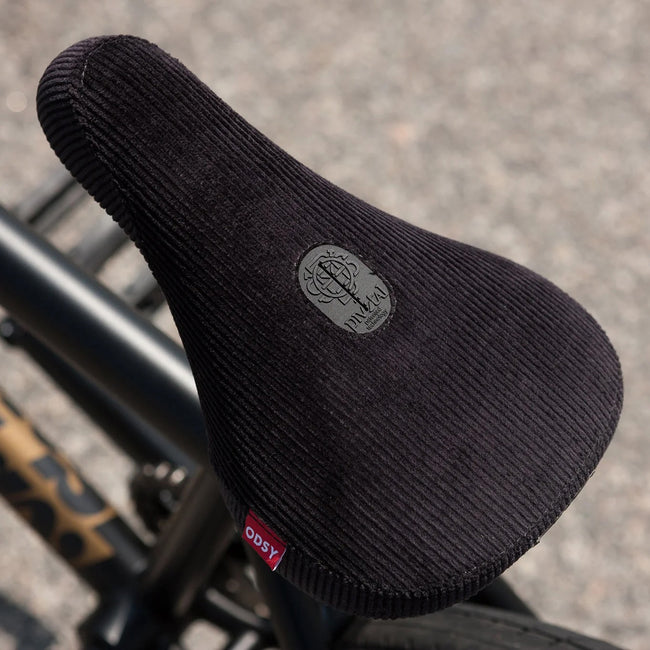

• Seat: Odyssey Broc Raiford Signature, Pivotal
• Seat Alternate: Odyssey Big Stitch, Pivotal
• Seat Post: Sunday Pivotal
• Seat Clamp: Sunday
• Sprocket: Sunday Sabertooth v2, 25T, steel
• Cranks: 170mm, 3-piece, chromoly
• BB Parts: Sealed, Mid, 19mm

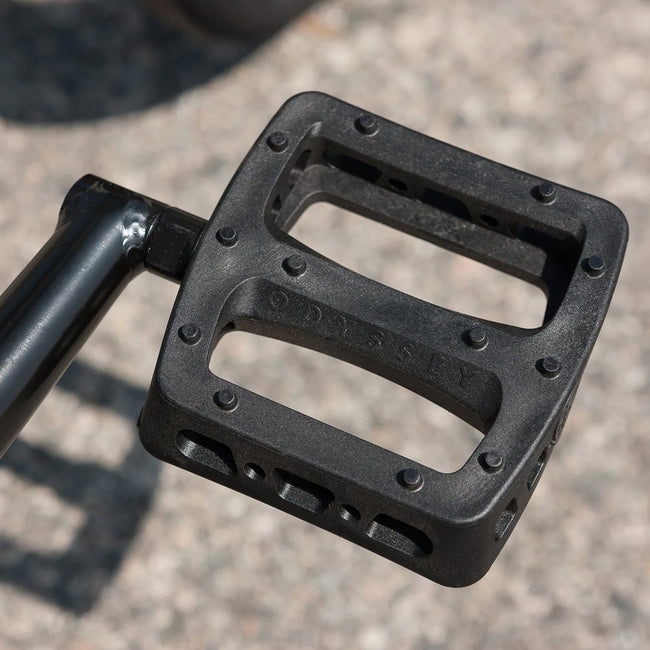

• Pedals: Odyssey Twisted PC Pro

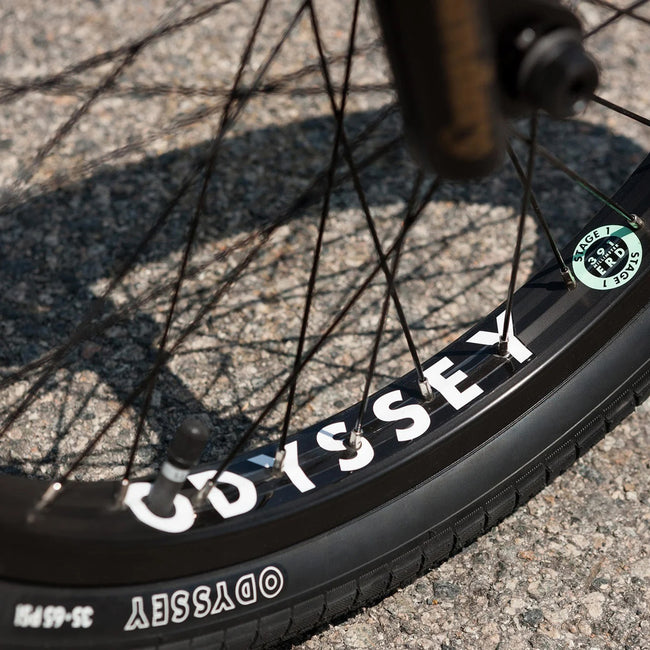

• Rims: Odyssey Stage 1, 20", 36H

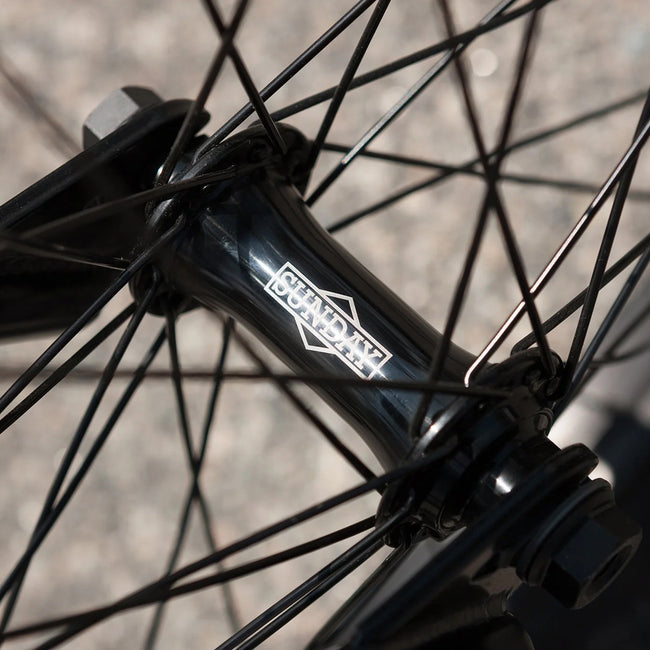

• Front Hub: Sunday, 36H, low-flange, sealed , 3/8" female axle

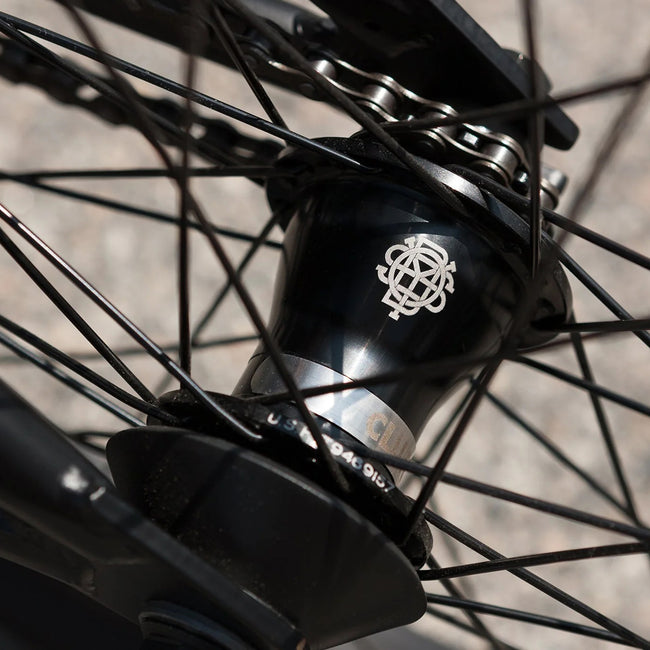

• Rear Hub: Odyssey Clutch v2 freecoaster, 36H, 14mm female axle w/ 9T driver, LHD or RHD, non-drive side plastic guard
• Spokes: 14g steel, black

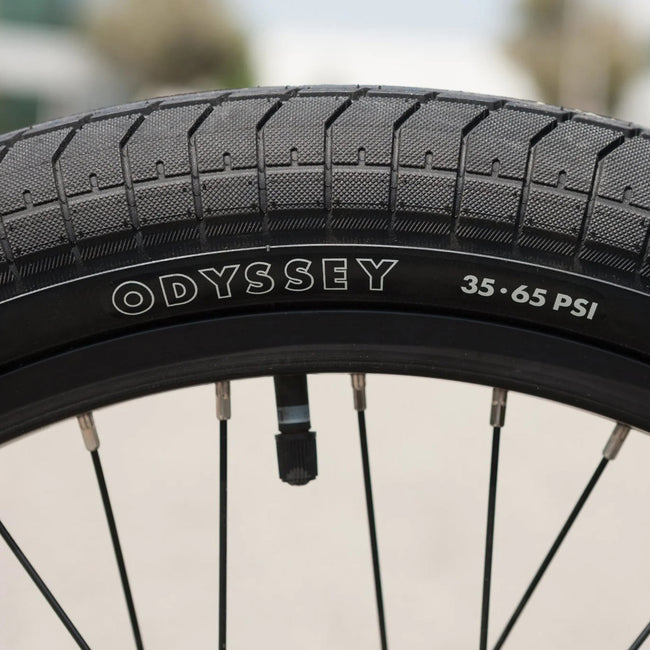

• Tires: Odyssey Path Pro OEM, 20 x 2.4" (F & R)
• Chain: KMC Z1 wide
• Approx. Weight: 26.78lbs (with brakes)

FRAME GEOMETRY

• Top Tube Length: 21"
• Head Tube Angle: 75.5°
• Seat Tube Angle: 71°
• Chainstay Length: 13.2-13.5”
• Bottom Bracket Height: 11.7"
• Standover: 9"

HANDLEBAR GEOMETRY

• Rise: 9"
• Width: 28.5"
• Backsweep: 12°
• Upsweep: 4°
