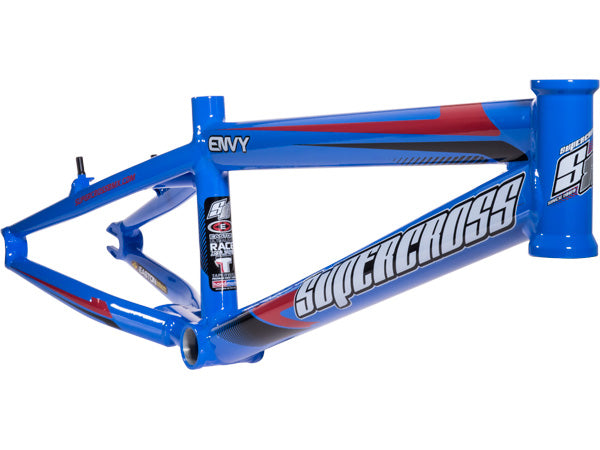

Supercross Envy V3 BMX Race Frame-Cyan Blue

Supercross
Sold Out

About This Product: Supercross Envy V3 BMX Race Frame-Cyan Blue

Supercross Envy V3 - these frames are handbuilt from custom spaced Easton ULTRA LIGHT RACE 7005 Taperwall tube set with race-proven geometry.  The Supercross ENVY Pro frames start at only 2.75 lbs....that's light!

NEW FEATURES FOR 2013:
*New 15mm rear dropout with 10mm adapters included
*New butted and tapered chainstay and seatstays for improved power transfer and stiffness
*New Bulge butted seatmast for improved bottom bracket stiffness

NOTE: Mini thru Expert frames now come with 1 1/8" headtube.  Use a "step-done" headset for use with 1" forks

CARRYOVER FEATURES:

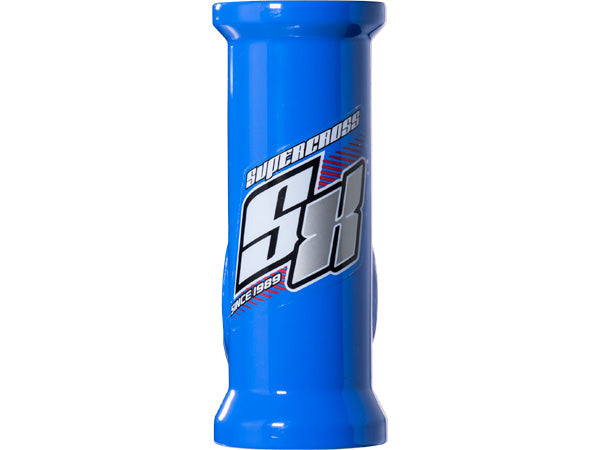

*Integrated Campy style 45/45 headtube - requires Integrated headset with 45/45 angle
*CNC Machined Euro bottom bracket shell

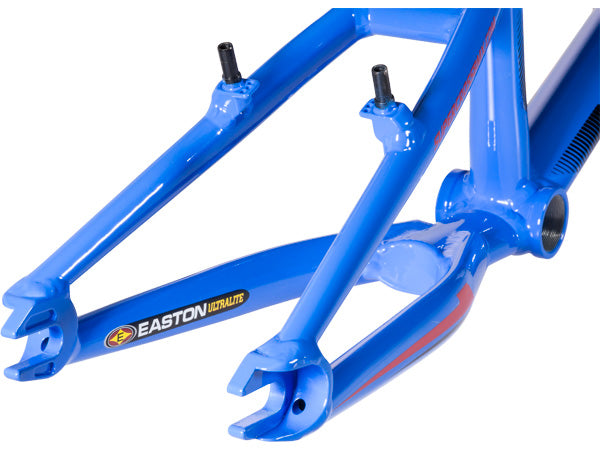

*Backside CBC'd 3D shaped dropouts
*Exclusive custom-butted and shaped taperwall downtube
*Flipped teardrop taperwall toptube
*Tapered chain and seat stays

SEAT POST / SEAT CLAMP SPECS:
Mini - Expert:  22.2mm post, 1" clamp (25.4mm)
Expert XL - Expert XXL:  25.4mm post, 1 1/8" clamp (28.6mm)
All Pro Frames:  27.2mm, 1 1/4" clamp (31.8mm)

USE: Race
MATERIAL: 7005 aluminum
HEADSET STYLE: 45°/45° Integrated
BRAKE MOUNTS: V-Brake
BB SHELL: Euro
TT: Top Tube | CS: Chain Stay | SA: Seat Angle | HA: Head Angle

GEOMETRY SPECS:
SIZE
 TT
 CS
 HEADSET HA SA BB HEIGHT WEIGHT
MINI
 17.5" 12.25" 1"- 1 1/8" 72° --- 10.5" 2lbs 1oz
JUNIOR 18.5" 13.2" 1"- 1 1/8" 73.5° --- 10.75" 2lbs 2oz
JUNIOR PLUS
 19" 13.2" 1"- 1 1/8" 73.5° --- 10.75" 2lbs 3oz
EXPERT 19.5" 13.75" 1"- 1 1/8" 74.5° --- 10.8" 2lbs 5oz
EXPERT XL 20" 14" 1 1/8" 74.5° --- 11.35" 2lbs 6.5oz
EXPERT XXL 21" 14" 1 1/8" 74.5° --- 11.7" 2lbs 8.8oz
PRO 20.5" 15" 1 1/8" 74.5° --- 11.65" 2lbs 12oz
PRO PLUS
 20.75" 15" 1 1/8" 74.5° --- 11.65" 2lbs 13oz
PRO XL 21.25" 15.25" 1 1/8" 74.5° --- 11.65" 2lbs 14.8oz
PRO XXL 21.75" 15.25" 1 1/8" 74.5° --- 11.65" 2lbs 15.8oz
JUNIOR 24 19.5" 14.4" 1" 73.5° --- 11.25" 2lbs 2oz
EXPERT 24
 20.5" 15" 1" 73.5° --- 11.5" 2lbs 8.8oz
PRO SHORT 24
 20.5" 14.75" 1 1/8" 73.5° --- 11.65" 2lbs 13oz
PRO 24
 21.5" 15.35" 1 1/8" 73.5° --- 11.65" 2lbs 15.8oz
PRO XL 24 22" 15.35 1 1/8" 73.5° --- 11.65" 3lbs 1.2oz

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:
