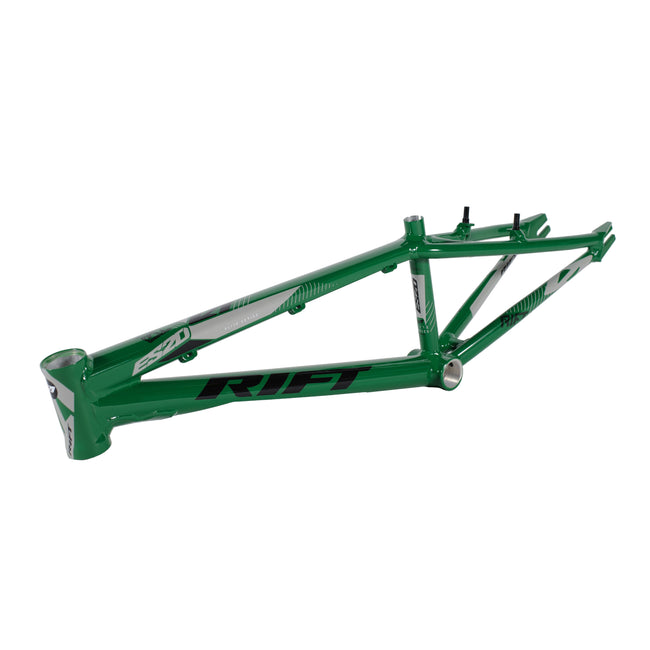

Tangent Rift Disc ES20D BMX Race Frame-Gloss Green/Grey-Black Decals

Save 18%
$699.88 $849.95
  • Pro
  • Pro XL
  • Pro XXL
  • Pro XXXL
Secure Checkout

About This Product: Tangent Rift Disc ES20D BMX Race Frame-Gloss Green/Grey-Black Decals

The super slick Tangent Rift Disc ES20D BMX Race Frame-Gloss Green/Grey-Black Decals is built tough, light and fast with double heat-treated 7005 alloy. Hydro-Form chainstays and toptube ramp up the strength of this championship-ready race frame while the CNC-machined 3D Dropouts with built-in chain tensioners and disc hanger allow easy adjustments. The Pro Sizes also feature Hydro-Form down tubes, bulge seat tubes, and CNC'd integrated tapered head tube for added agility and control. Gain an edge on the competition and Ride the Rift.

FEATURES

  • 7005 Double Heat-Treated Alloy
  • Hydro-Form Chain Stays
  • Hydro-Form Top Tube
  • Pro Sizes Have Hydro-Form Down Tube
  • Pro Sizes Are Disc Only Frames
  • Youth Sizes Are V-Brake Only Frames
  • Pro Sizes Have Bulge Seat Tube
  • Pro Sizes Have CNC Integrated Tapered Head Tube
  • CNC 3D Dropouts with Built in Chain Tensioners and Disc Hanger
  • Decals Under Clear Coat

SPECIFICATIONS:

PRO:

  • Top Tube Length: 20.5"
  • Bottom Bracket Height: 11.25″
  • Chainstay Length: 14.06″
  • Head Tube Angle: 74 Degrees
  • Headset Size (Integrated): 1 1/8"
  • Seat Tube Angle: 72 Degrees
  • Seat Clamp Size: 31.8mm
  • Seat Post Ream: 27.2mm
  • Weight: 3lbs 1oz or 1389 Grams


PRO XL:

  • Top Tube Length: 21"
  • Bottom Bracket Height: 11.375″
  • Chainstay Length: 15″
  • Head Tube Angle: 74 Degrees
  • Headset Size (Integrated): 1 1/8"
  • Seat Tube Angle: 72 Degrees
  • Seat Clamp Size: 31.8mm
  • Seat Post Ream: 27.2mm
  • Weight: 3lbs 3oz or 1446 Grams


PRO XXL:

  • Top Tube Length: 21.5"
  • Bottom Bracket Height: 11.375″
  • Chainstay Length: 15.28″
  • Head Tube Angle: 74 Degrees
  • Headset Size (Integrated): 1 1/8"
  • Seat Tube Angle: 72 Degrees
  • Seat Clamp Size: 31.8mm
  • Seat Post Ream: 27.2mm
  • Weight: 3lbs 4oz or 1474 Grams


PRO XXXL:

  • Top Tube Length: 22"
  • Bottom Bracket Height: 11.85″
  • Chainstay Length: 15.5″
  • Head Tube Angle: 74 Degrees
  • Headset Size (Integrated): 1 1/8"
  • Seat Tube Angle: 72 Degrees
  • Seat Clamp Size: 31.8mm
  • Seat Post Ream: 27.2mm
  • Weight: 3lbs 11oz or 1673 Grams

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:
