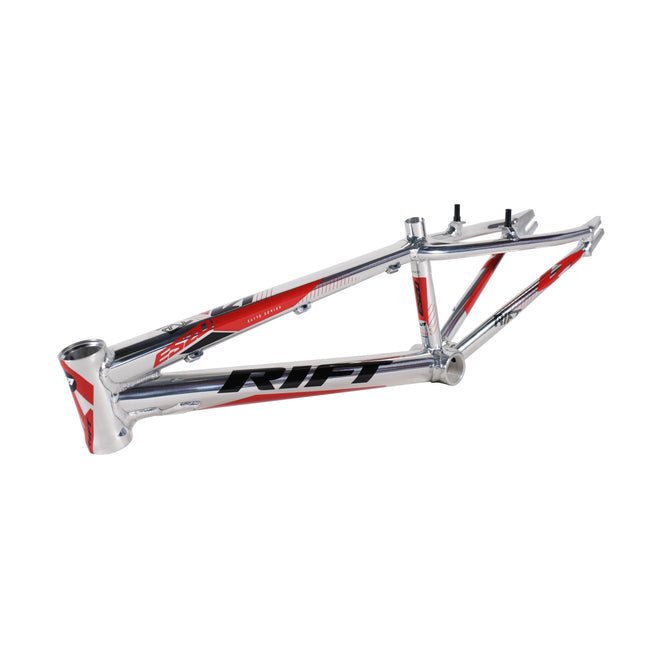

Tangent Rift Disc ES24D BMX Race Frame-Polished/Red-Black Decals

Save 22%
$699.88 $899.95
  • Pro Cruiser 24-inch
  • Pro XL Cruiser 24-inch
Secure Checkout

About This Product: Tangent Rift Disc ES24D BMX Race Frame-Polished/Red-Black Decals

The super slick Tangent Rift Disc ES24D BMX Race Frame-Polished/Red-Black Decals is built tough, light and fast with double heat-treated 7005 alloy. Hydro-Form chain stays, top tube and down tube ramp up the strength of this championship-ready race frame. The Rift ES24 features CNC-machined 3D Dropouts as well as an integrated head tube and bottom bracket. For maximum wheel clearance, this frame is designed with a CNC'd CS Yoke. Gain an edge on the competition and Ride the Rift.

Note:

Image may differ slightly from frame described.

FEATURES

  • 7005 Double Heat Treated Alloy
  • Hydro-Form Top Tube
  • Hydro-Form Down Tube
  • Hydro-Form Chain Stays
  • Pro Sizes Are Disc Only Frames
  • Youth Sizes Are V-Brake Only Frames
  • CNC CS Yoke for Max Wheel Clearance
  • Bulge Seat Tube
  • CNC Integrated Head Tube and BB
  • CNC 3D Dropouts
  • Decals Under Clear Coat

SPECIFICATIONS:

PRO:

  • Top Tube Length: 21.675"
  • Bottom Bracket Height: 12.0″
  • Chainstay Length: 15.175″
  • Head Tube Angle: 73 Degrees
  • Headset Size (Integrated): 1 1/8" (1" compatible)
  • Seat Tube Angle: 70 Degree
  • Seat Clamp Size: 31.8mm
  • Seat Post Ream: 27.2mm
  • Weight: 3lbs 8oz or 1587 Grams


PRO XL:

  • Top Tube Length: 22.25"
  • Bottom Bracket Height: 12.0″
  • Chainstay Length: 15.175″
  • Head Tube Angle: 73 Degrees
  • Headset Size (Integrated): 1 1/8" (1" compatible)
  • Seat Tube Angle: 70 Degree
  • Seat Clamp Size: 31.8mm
  • Seat Post Ream: 27.2mm
  • Weight: 3lbs 12oz or 1701 Grams

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:
