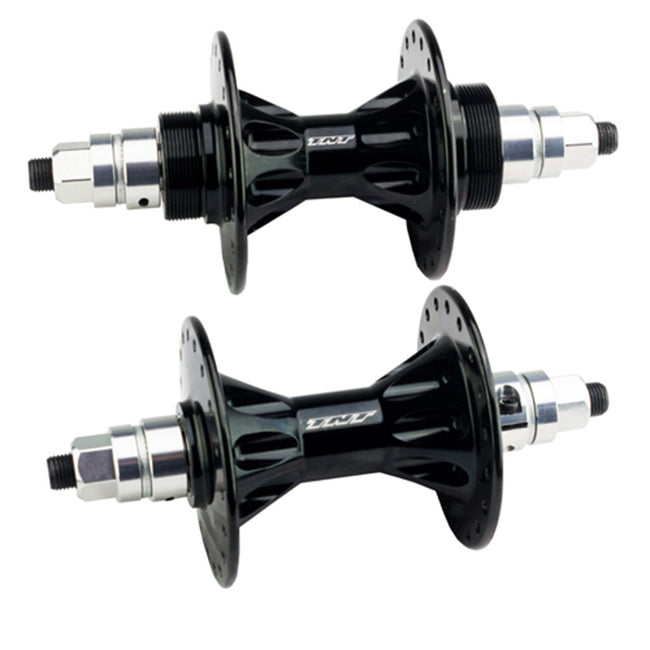

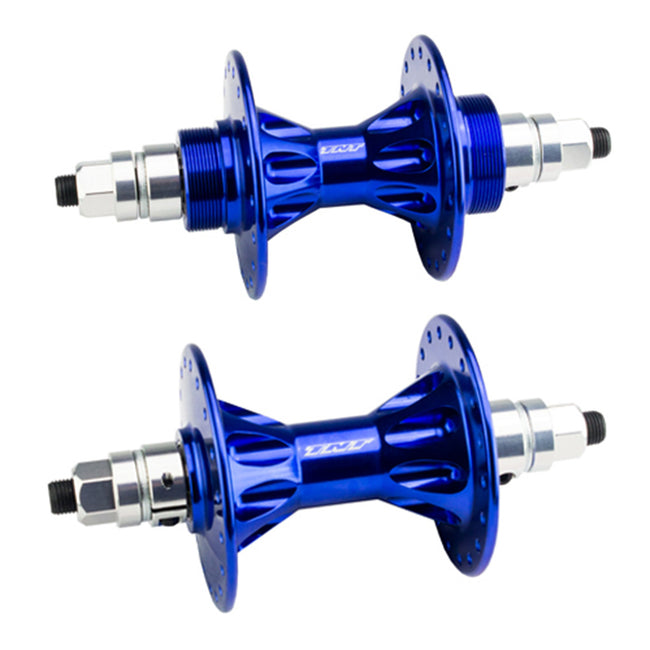

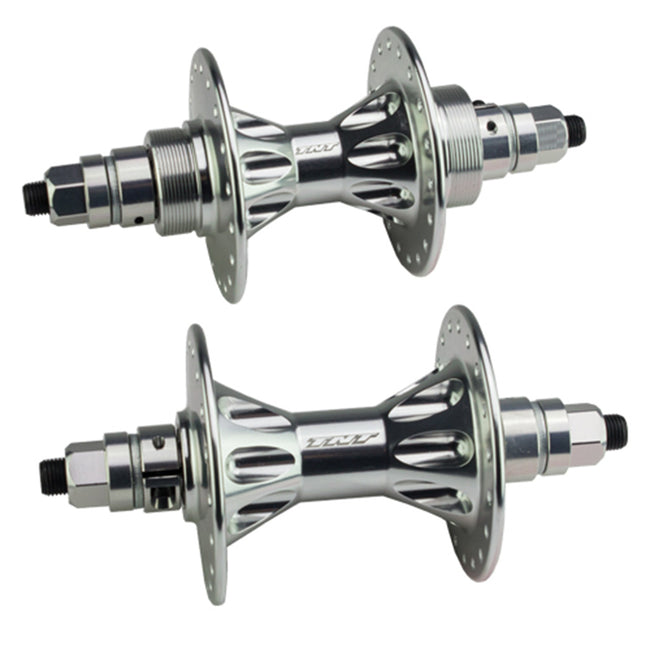

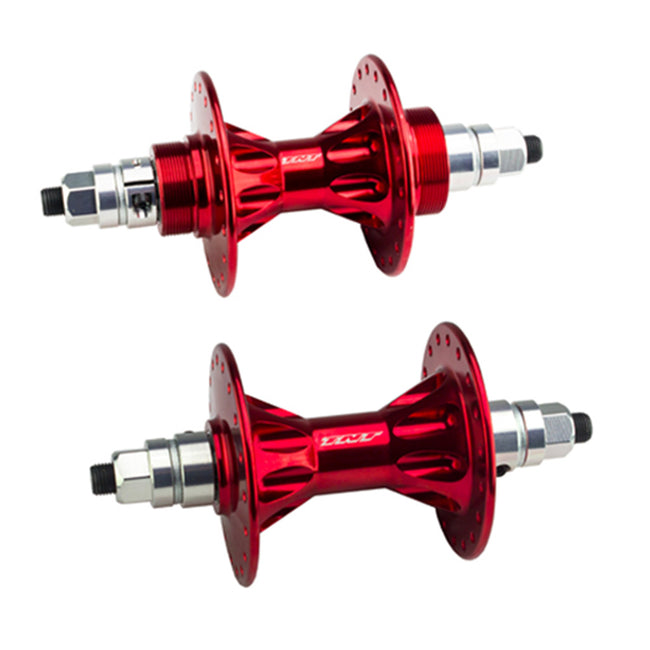

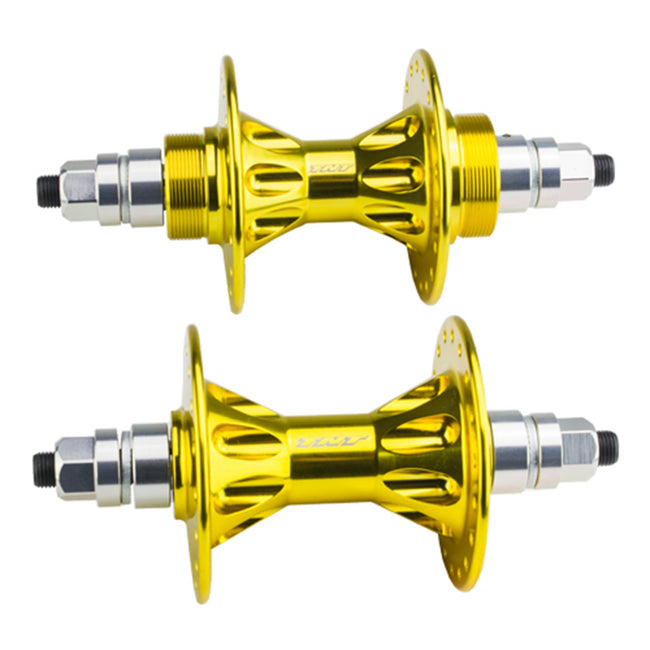

TNT Revolver Hubset

The TNT Revolver Hub Set at J&R Bicycles is a high-quality high-flange classic that was first introduced back in the 80s and has stood the test of time. The bigger brother to the low-flange Derringer, the Revolver features the same mechanics with a larger flange. Along with a trusted reputation, the TNT Revolver offers premium features like precision-sealed bearings, chromoly axle, 7075 bearing collars and axle nuts and flip-flop freewheel capability.

FRONT HUB DETAILS:

• Flange Size = 62.00mm, (measured from center to center of spoke hole)
• Flange Distance = 67.00mm, (measured from center of flange to center of flange)
• Center of Hub to Center of Flange = 33.50mm
• Axle Length = 150mm (Chromoly Axle) (3/8″ x 26tpi)
• Hub Spacing = 100mm (to fit between dropouts)
• Bearings = 2 Sealed

REAR HUB DETAILS:

• Flange Size = 62.00mm, (measured from center to center of spoke hole)
• Flange Distance = 54.00mm, (measured from center of flange to center of flange)
• Center of Hub to Center of Flange = 27.00mm
• Axle Length = 160mm (Chromoly Axle) (3/8″ x 26tpi)
• Hub Spacing = 110mm (to fit between dropouts)
• Bearings = 2 Sealed
